dCS Lina Network DAC (Silver Finish)

The Lina Network DAC delivers extraordinary sound from all digital sources and audio recordings. Its design combines our renowned playback technologies – including the dCS Ring DAC and Digital Processing Platform – with a wealth of new innovations. Its powerful flex-rigid circuit board enables us to deliver all the features and benefits you’d expect from a dCS system in a much smaller chassis. The result is a powerful, supremely capable product that excels in a vast range of setups and listening environments.

• Supports hi-res streaming via Roon, TIDAL, Qobuz, Spotify, Deezer, AirPlay and more
• dCS Ring DAC system ensures sound is reproduced with absolute integrity, for a highly detailed, natural and deeply musical performance
• dCS Expanse technology offers enhanced crossfeed optimisation for a more natural and immersive experience when listening to a wide range of stereo recordings
• Flexible dCS Digital Processing Platform provides unlimited scope for future upgrades
• Touch screen UI with customisable menu provides seamless navigation [system can also be controlled via dCS Mosaic app]

• Product Dimensions / Weight: 4.78in (H) x 8.66in (W) x 13.3in (D); 16.3lb (121.5mm (H) x 220mm (W) x 339mm (D); 7.4kg)

• Finish: Silver machined aluminium with crystal LED display

• Electronics: dCS Ring DAC and Digital Processing Platform on flex ridged PCB; Stream Unlimited S800; Automatic voltage switching

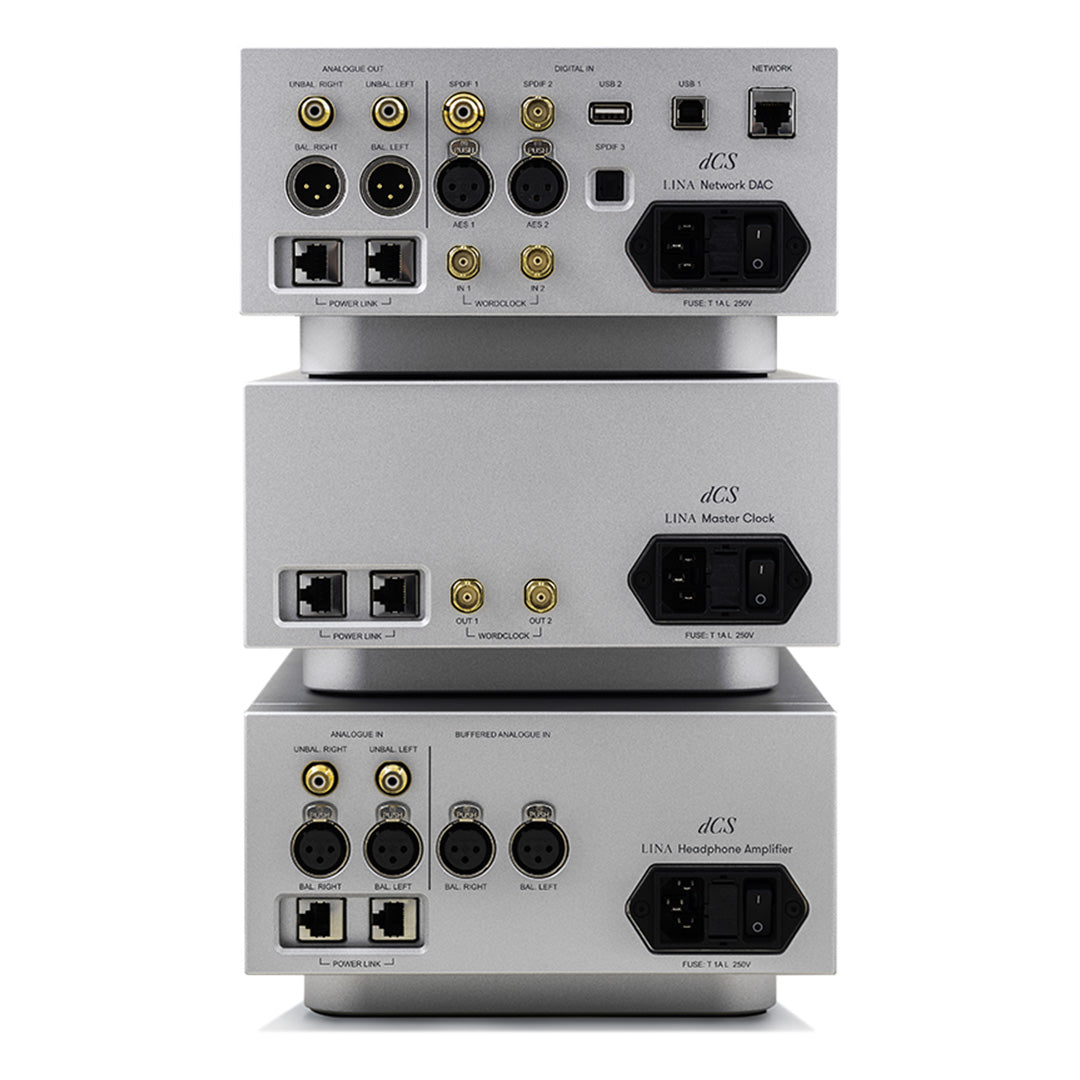

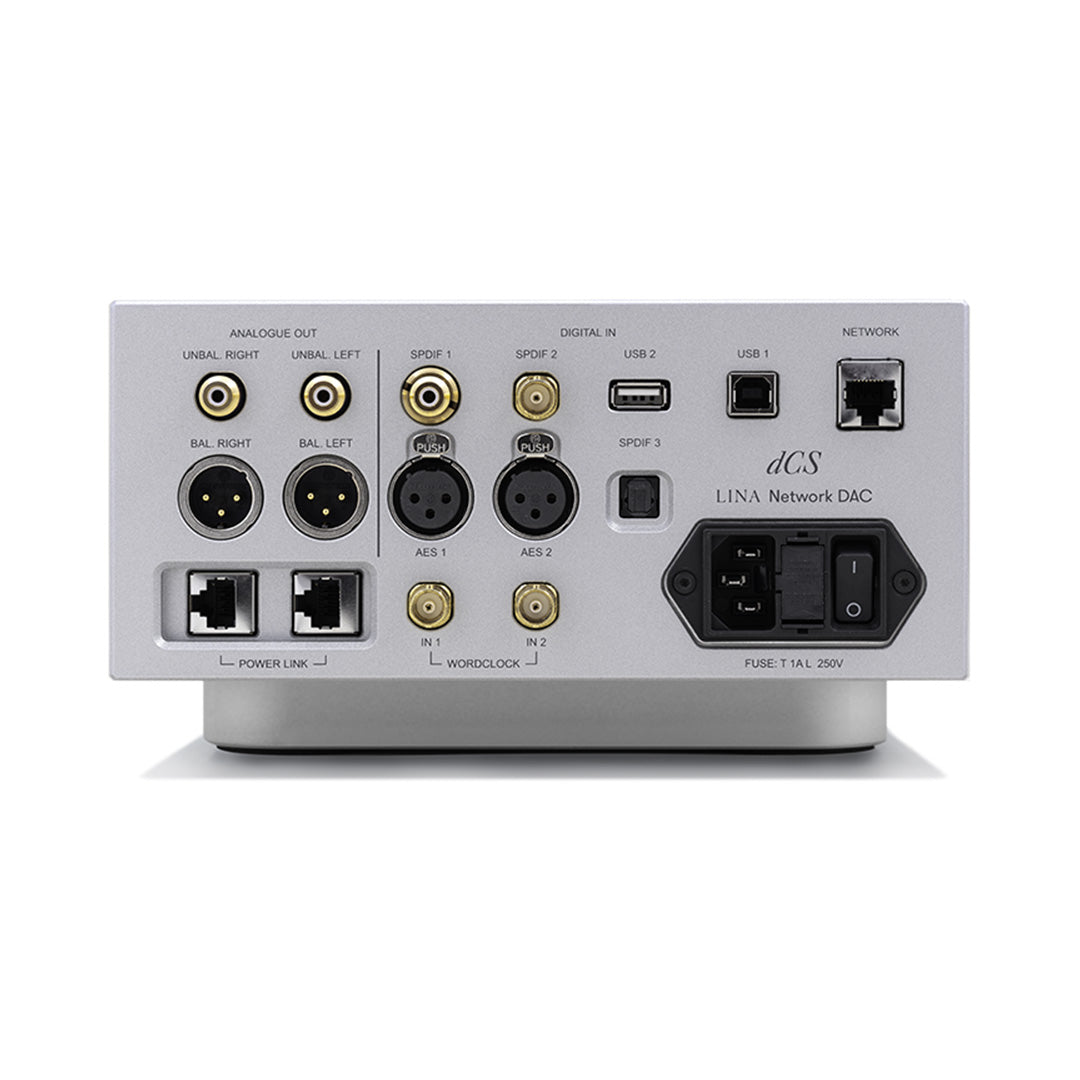

• Digital Inputs:
• 2 x AES/EBU on 3 pin XLR 44.1-384kS/s
• 1 x S/PDIF BNC Coax 44.1-192kS/s
• 1 x S/PDIF on RCA 44.1-192kS/s
• 1 x Toslink 44.1-96kS/s
• 1 x USB Type B 44.1-384kS/s, PCM and DSD, DSDx2 in Async Mode
• 1 x USB Type A connector for mass storage devices (navigated using Mosaic)
• Analog Outputs:
• 1 x stereo pair 3 pin balanced XLR
• 1 x stereo pair unbalanced RCA
• Network Interface: RJ-45 Connector
• Streaming Compatibility (supports the following platforms and services):
• UPnP
• Qobuz
• Deezer
• Tidal
• Internet Radio
• Spotify
• Apple AirPlay 2 (support at 44.1 or 48kS/s)
• RoonReady
• Sample Frequencies & Formats (supports the following audio formats and sample rates):

• 44.1-384kHz
• DSD 64, 128
• Native DSD + DoP (input dependent)
• FLAC, WAV, AIFF, MQA
• Upsampling: Multi-stage DXD oversampling with switchable DSD

• Word Clock: 2 x Word Clock inputs on 75 ohm BNC connectors; will lock to 44.1-192kHz

• Filters: PCM mode: 2 filters + MQA; DSD mode: 4 progressive filters

• Crossfeed Settings: Standard crossfeed; dCS Enhanced crossfeed (E1); dCS Enhanced crossfeed (E2)

• Power:
• IEC inlet & power switch on rear panel
• 90-120v & 220-240v, 50/60Hz nominal
• Automatic voltage switching
• Power synchronised with other dCS control link products (RJ45)

• Frequency Response (set to filter 1):
• Fs = 44.1 or 48kS/s +/-0.1dB, 10Hz-20kHz
• Fs = 88.2 or 96kS/s +/-0.1dB, 10Hz-20kHz -3dB @ >38kHz
• Fs = 176.4 or 192kS/s +/-0.1dB, 10Hz-20kHz -3dB @ >67kHz
• Fs = 352.8 or 384kS/s +/-0.1dB, 10Hz-20kHz -3dB @ >100kHz
• DSD64 +/-0.1dB, 10Hz-20kHz -3dB @ >90kHz
• DSD128 +/-0.1dB, 10Hz-20kHz -3dB @ >100kHz
• Residual Noise (6v output setting):
• 16-bit data: Better than –96dB0, 20Hz-20kHz unweighted
• 24-bit data: Better than –113dB0, 20Hz-20kHz unweighted

• Spurious Responses: Better than –105dB0, 20Hz-20kHz
• Analogue Outputs: 1 x stereo pair 3 pin balanced XLR, 1 x stereo pair unbalanced RCA
• L-R Crosstalk: Better than –115dB0, 20Hz-20kHz
• Included with Lina DAC: 1 x mains cable; 2 x XLR (0.5m); 1 x Ethernet cable (2m); 1 x Power Link cable (0.5m)
