$6,000.00

This item qualifies for our new in-store fulfillment incentive program. Orders over $250 placed online and picked up in-store are now eligible for your choice of a complementary vinyl LP or Burmester Audio CD (up to a $40 retail value) upon pickup. We're excited to welcome you to our showroom!

The third generation features the further evolution of DS Audio’s optical transducer system as used in their Grand Master cartridge. New circuitry and casework for the 003 equalizers create the perfect mate for the 003 cartridges. Echoing the industrial design of the Grand Master eq, the 003 eq’s sculptural design truly reflects the 3rd generation from DS Audio.
OVERVIEW

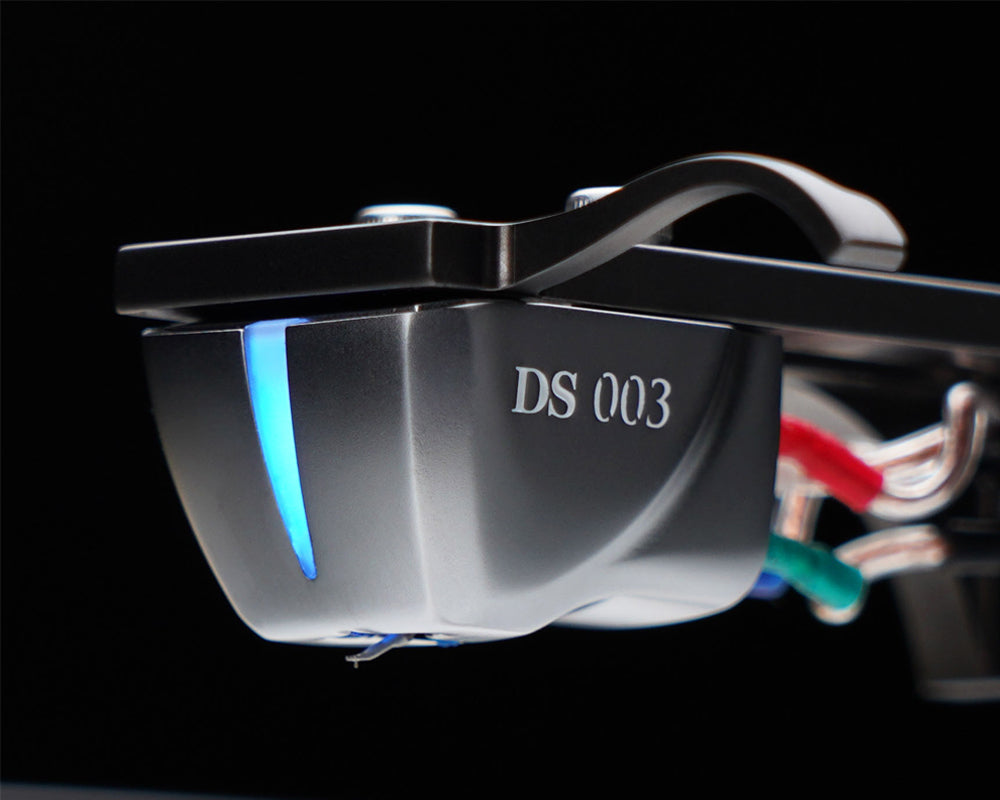

DS Audio 003 Phono Cartridge
DS Audio elevates the sound of vinyl playback with their latest optical cartridge set. This pure analog playback system implements the new “dual-mono” generator from their flagship Grand Master cartridge, resulting in enhanced clarity, improved imaging, and greater musical involvement.

Incredibly low effective mass.
With the new dual-mono optical generator, the shading plate is redesigned for optimal position and agility. Using 99.9% beryllium instead of aluminum found in previous designs, the weight is significantly reduced by 50%. This is less than 1/10th of the mass found in the moving coil of a typical MC cartridge. This incredibly low effective mass promotes even greater trackability and reduced resonance, further improving the advantages of DS Audio optical cartridges.

Line contact stylus, ultra-rigid body design, and improved internal wiring.
The DS 003 cartridge features a line contact diamond stylus with an aluminum cantilever. The cartridge body is machined of A5052 aluminum and the body structure is designed for maximum rigidity. The DS 003 internal wiring is 1.6 times thicker than in the second-generation optical cartridges, reducing resistance for improved signal flow.

DS Audio’s technology allows unmatched performance.
The DS 003 optical phono cartridge brings the 3rd generation of optical cartridge sound, as found in the Grand Master cartridge, to a new level of performance and price.

The DS 003 cartridge and 003 phono stage are sold as a set and are a perfectly matched pair. They are compatible with all DS Audio optical cartridges and equalizers providing many choices and upgrades for the ultimate in pure analog vinyl enjoyment.

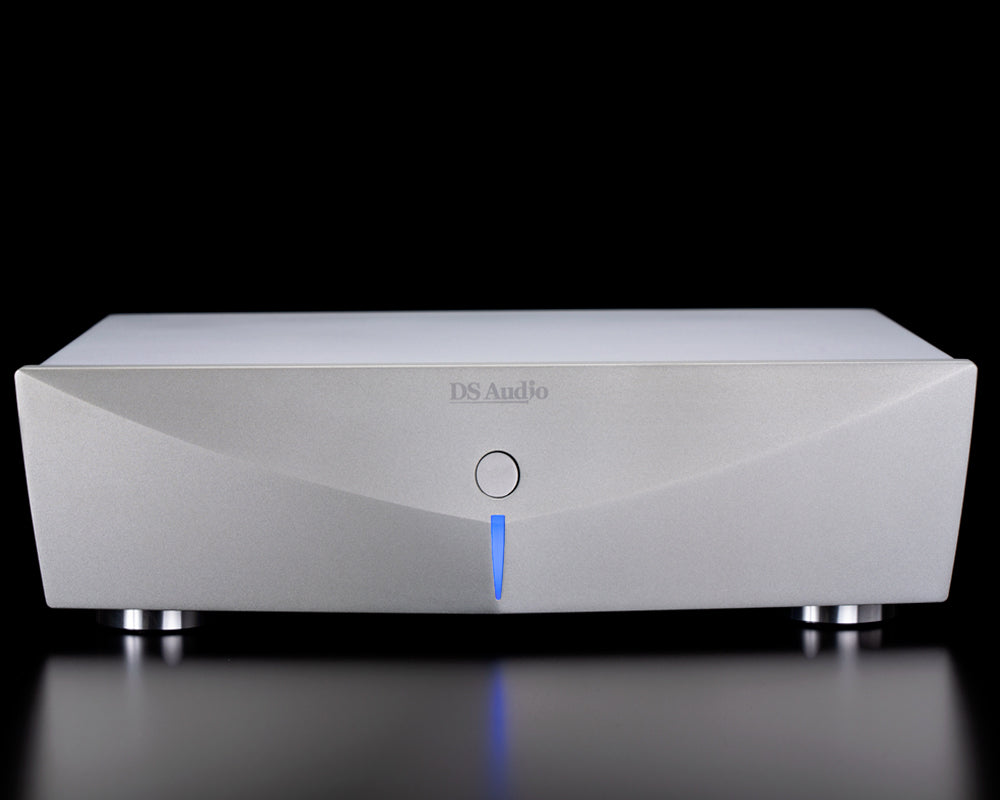

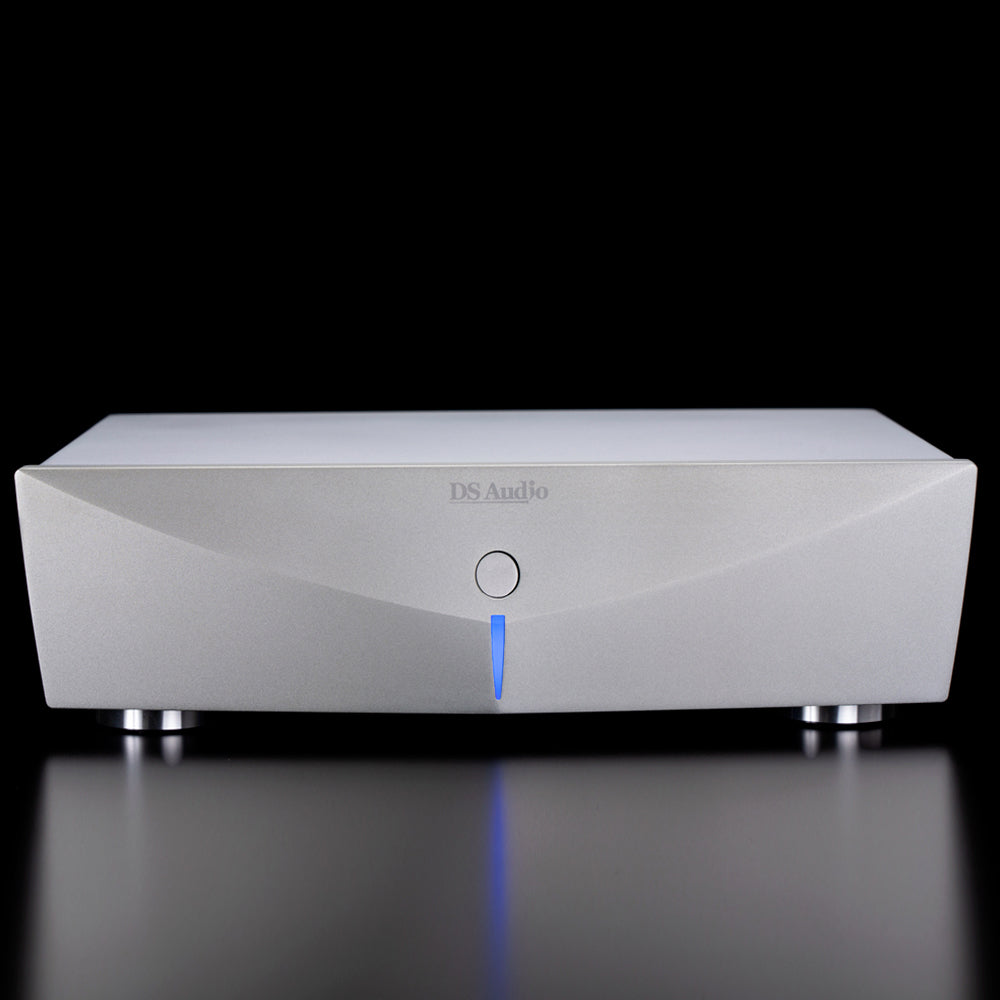

DS003 Phono Stage
Discrete circuitry with critical signal paths wired point-to-point assures that the 3rd generation 003 optical cartridge generator performs to its optimal level. Compared to the DS002 equalizer, the thickness of the circuit board has been increased from 1.6 mm to 2.0 mm for greater vibration control.

On these new circuit boards, the thickness of the copper foil has been increased from 35μ to 70μ for greater conductivity. New film capacitors populate this improved board. The DS003 equalizer allows you to select four different roll-off curves for the low-frequency range, allowing you to optimize the bass to best match your system and listening room.

SPECIFICATIONS

Phono Cartridge

  • Rated Output Voltage: 500mV (1kHz) at Equalizer output
  • Weight: 50 kg
  • Input Terminal: RCA
  • Output Terminal: RCA X2
  • Impedance: 120 ohms
  • Dimension: 330Wx92Hx295D (mm)

Phono Stage
  • Output: 70mV (1kHz) (at Cartridge output)
  • Channel Separation: 27dB or greater
  • Stylus Pressure: 2.0- 2.2 grams (2.1 grams is recommended)
  • Cantilever: Aluminum
  • Stylus: Line Contact
  • Weight: 7.7g
  • Body Material: Aluminum
  • Warranty: 1 year
