In-Store Only - View store locations and hours

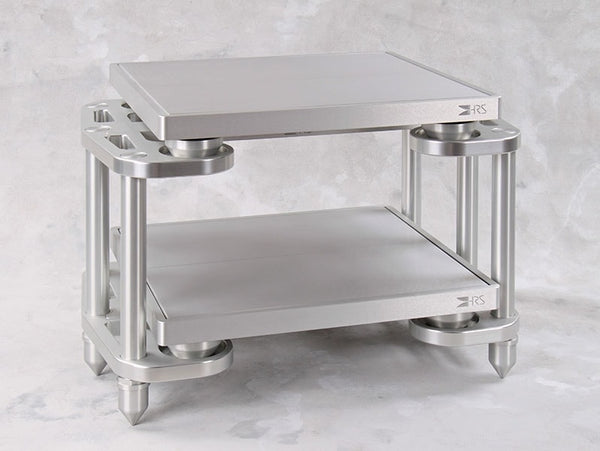

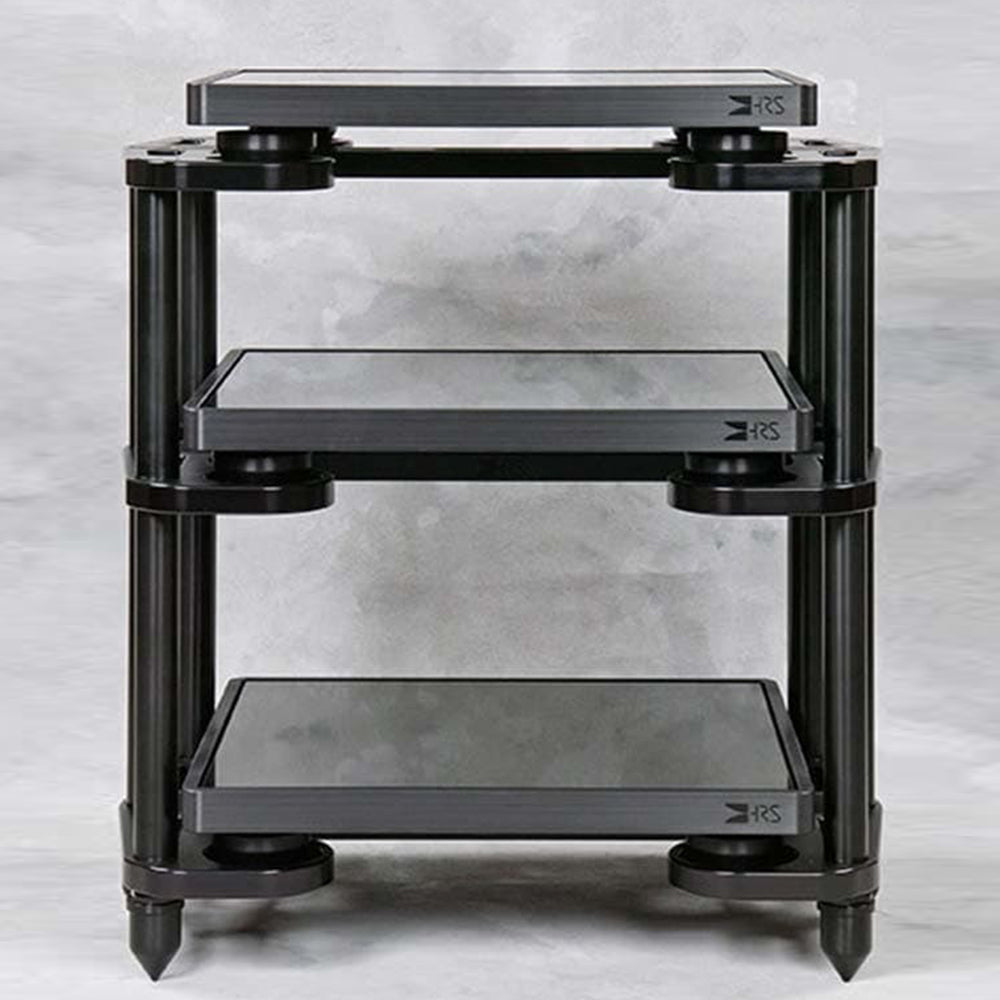

The SXR Audio Stand was developed based on technical concepts and technology derived from HRS' reference level MXR Audio Stand frames. The SXR frame system combined with Harmonic Resolution Systems Isolation Bases eliminates noise revealing a new level of musical performance.
OVERVIEW

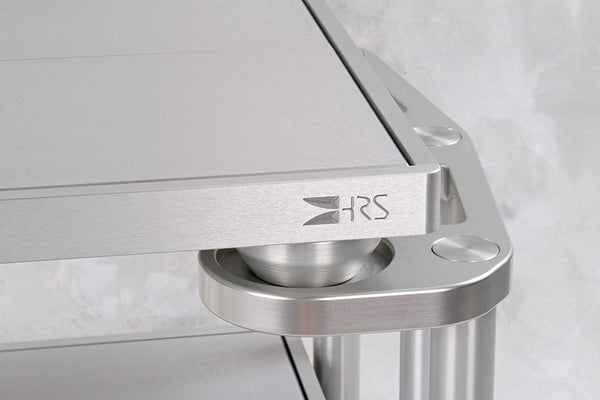

The modular frame concept is manufactured from billet-machined aircraft aluminum with a resonance control system. The highly acclaimed HRS Isolation Bases load directly into the SXR frame as the shelf system. The SXR frame optimizes Isolation Base performance while offering unique flexibility and functionality.

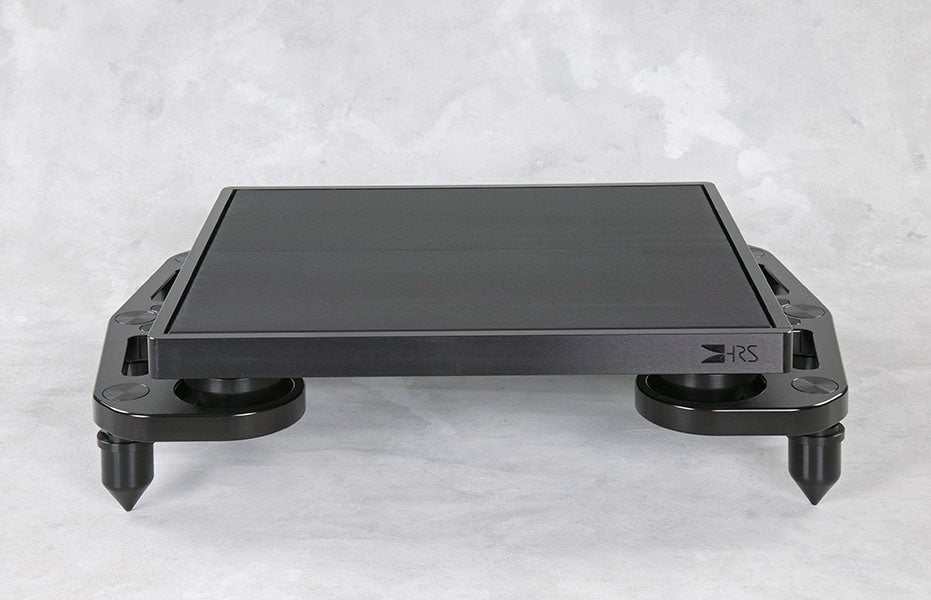

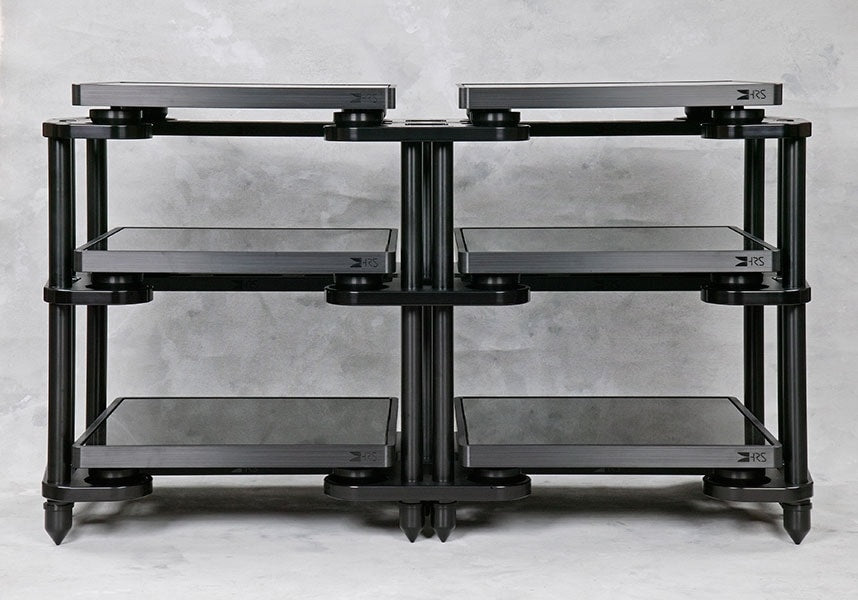

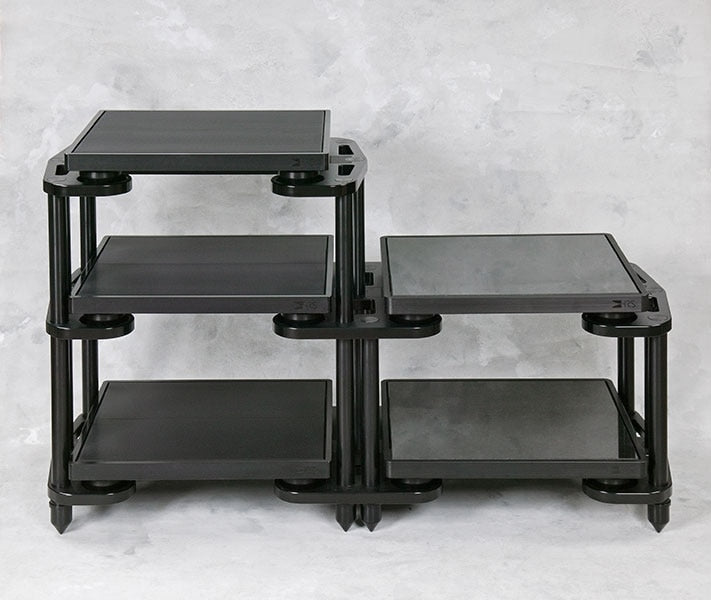

The SXR frame system is completely modular and can be expanded vertically or horizontally at any time. It is available in a 1V (amp stand) configuration and up to an infinite number of bays for larger systems. The SXR Audio Stand can be reconfigured, expanded or contracted at any time by acquiring the additional parts of the system needed to make the desired changes.

The owner of the SXR system can also change the component spacing of any system. Standard shelf spacing can be specified at 6 inches, 8 inches, or 10 inches. This can also be changed in the future if the component size changes by ordering new strut lengths.

Please contact us to determine the best configuration for your system needs.

SPECIFICATIONS

All dimensions are for reference only, and heights are based on 8” shelf spacing.

  • Model: SXR-1921-1V
  • Dimensions (WDH): 27.2″ X 19.0″ X 7″ Height based on 8” component spacing
  • Isolation Base Size: 21″ W 19″ D
  • Standard Number of Iso Bases: 1
  • Model: SXR-1921-2V
  • Dimensions (WDH): 27.2″ X 19.0″ X 18.5″ Height based on 8” component spacing
  • Isolation Base Size: 21″ W 19″ D
  • Standard Number of Iso Bases: 2
  • Model: SXR-1921-3V
  • Dimensions (WDH): 27.2″ X 19.0″ X 30″ Height based on 8” component spacing
  • Isolation Base Size: 21″ W 19″ D
  • Standard Number of Iso Bases: 3
  • Model: SXR-1921-4V
  • Dimensions (WDH): 27.2″ X 19.0″ X 41.5″ Height based on 8” component spacing
  • Isolation Base Size: 21″ W 19″ D
  • Standard Number of Iso Bases: 4
  • Model: SXR-1719-1V
  • Dimensions (WDH): 25.2″ X 17.0″ X 7″ Height based on 8” component spacing
  • Isolation Base Size: 19″ W 17″ D
  • Standard Number of Iso Bases: 1
  • Model: SXR-1719-2V
  • Dimensions (WDH): 25.2″ X 17.0″ X 18.5″ Height based on 8” component spacing
  • Isolation Base Size: 19″ W 17″ D
  • Standard Number of Iso Bases: 2
  • Model: SXR-1719-3V
  • Dimensions (WDH): 25.2″ X 17.0″ X 30.0″ Height based on 8” component spacing
  • Isolation Base Size: 19″ W 17″ D
  • Standard Number of Iso Bases: 3
  • Model: SXR-1719-4V
  • Dimensions (WDH): 25.2″ X 17.0″ X 41.5″ Height based on 8” component spacing
  • Isolation Base Size: 19″ W 17″ D
  • Standard Number of Iso Bases: 4
