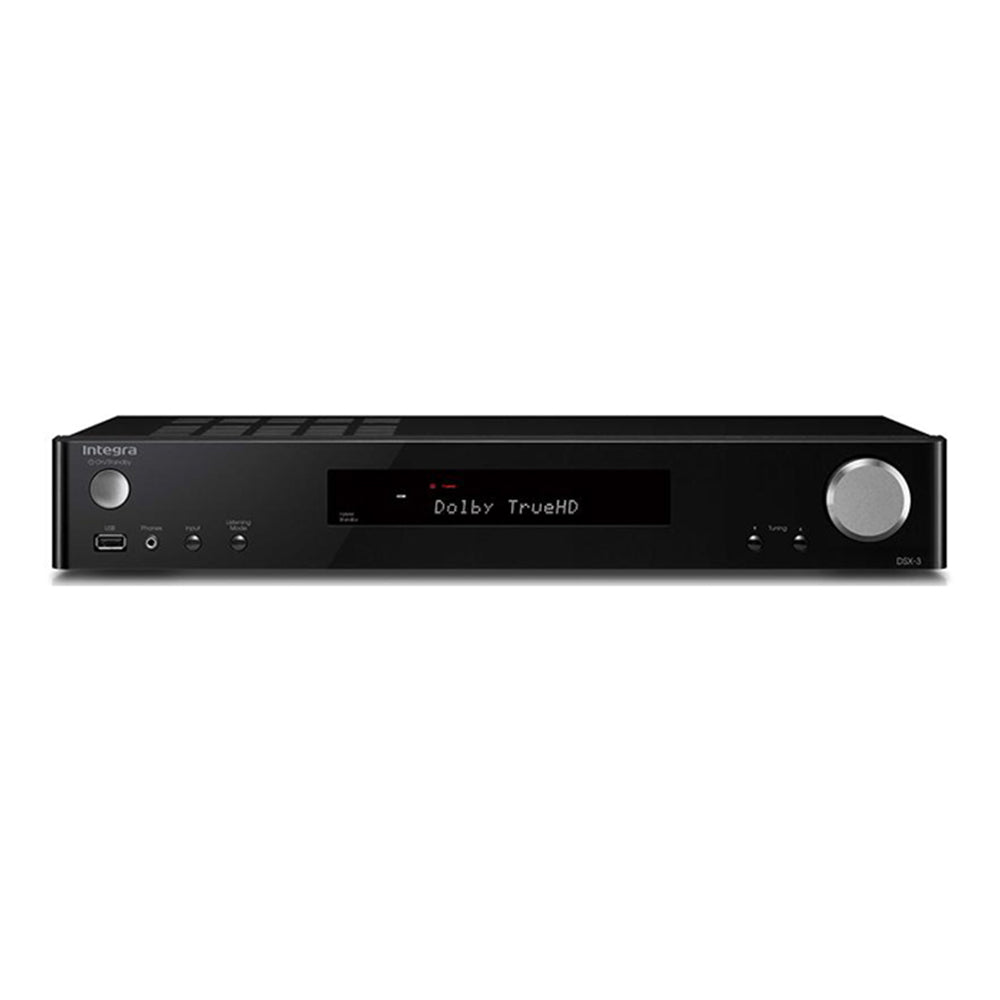

Integra DSX-3 Network A/V Receiver

Movie lovers that care about interior aesthetics can unlock the true sonic potential of 4K Ultra HD Entertainment with the slim and beautiful DSX-3, an integration-ready, cool running, and subtly unobtrusive component with the latest in music casting features and much more.

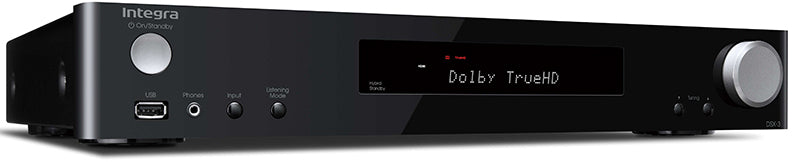

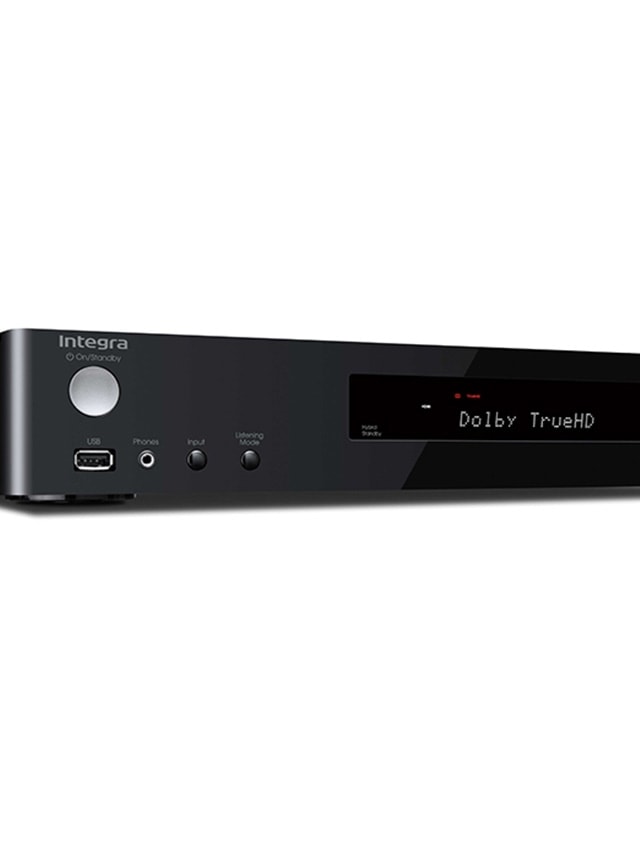

The DSX-3 features a low-profile design with all the perks of a traditional A/V Receiver; making it perfect for the enthusiast in need of a space-saving device. From apartments, to mobile homes, to boats, the DSX-3’s compact size leaves nothing short of its’ performance. Compatible with Dolby Atmos® and DTS:X™ via a firmware update, DSX-3 boasts a host of wireless connectivity options including AirPlay, Wi-Fi® and Bluetooth™ and can stream online subscription services like TIDAL, Pandora®, Spotify® and TuneIn so you’re never far from your music.

The DSX-3 enables transmission of High Dynamic Range (HDR) formats and provides enhanced picture quality by simultaneously enabling greater detail for both the dark and bright parts of an image. The DSX-3 also effortlessly upscales 1080p video to stunning 4k UltraHD.

Integra products are designed and engineered to meet the demands of custom audio/video systems installers. The DSX-3 includes system integration connectivity such as IP control with support for 2-way communication with 3rd party home automation systems. An infrared (IR) input makes for a clean, reliable installation.

AMPLIFIER
• Number of Channels: 6.1
• POWER (4 Ω 1 kHz, 1% THD, 1 CH Driven): 80 Watts
• Amplifier Frequency Response: 10 Hz – 40 kHz
• Continuous 6 Ω Rated: ✓
• Low Impedance Drive- Certified 4 Ω: ✓
• Hand Selected Parts to Ensure Low Impedance Performance: Custom- Audio Tuned
• Discrete Output Stages for All Channels: ✓
• All Channels Equal Power Output: ✓
• Ultra Efficient Class-D Design: ✓

PROCESSING
• Dolby Atmos and Dolby Surround: ✓ (Future Firmware Update)
• Dolby TrueHD: ✓
• DTS:X and DTS Neural:X: ✓ (Future Firmware Update)
• DTS-HD Master Audio: ✓
• AccuEQ Automatic Room Calibration: Advanced w/AccuReflex
• GAME Surround Modes (Rock, Action, Sports, Role Play): ✓
• 32-Bit DSP Chip for Advanced Processing: ✓
• Ultra-Low-Jitter Circuitry to Improve Audio: ✓
• Adjustable Crossover by Channel Pair: 40/45/50/55/60/70/80/90/100/110/120/130/150/180/200 Hz
• Accurate Speaker Distance Setting: 0.1 – foot
• A/V Sync Delay (by Source): -100 to +500 ms

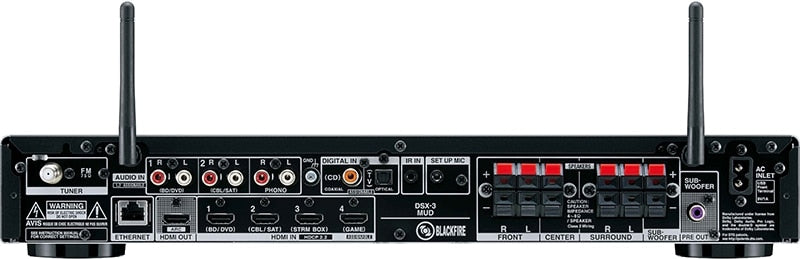

CONNECTIVITY
• HDMI Inputs / Output(s): 4 / 1
• HDMI 4K / 60 Hz- Capable HDMI Terminals: with HDR Support
• HDCP 2.2 Copy-Protection Compatibility: ✓
• HDMI Support for High Dynamic Range (HDR): ✓
• HDMI Support for BT.2020: ✓
• 4K / 60 Hz 4:4:4 Colorspace Support: ✓
• HDMI Support for 3D, Audio Return Channel and CEC: ✓
• HDMI Support for Deep Color, x.v.Color, LipSync: ✓
• HDMI Support for DVD-Audio, SACD, Multichannel PCM: ✓
• Analog to HDMI Upconversion: From 480i / 576i
• 4K Upscaling from 1080p: via HDMI
• Digital Audio Inputs (COAX / OPT): 1 / 1
• Analog Audio Inputs: 3
• Phono Input: ✓
• Subwoofer Pre-out: ✓
• 3.5 mm Headphone Output: ✓

NETWORK / USB
• FireConnect Wireless Multi-Room Audio Streaming Technology: ✓ (Future Firmware Update)
• App Control via iOS and Android-Powered Devices: Integra Control Pro
• Apple Airplay: ✓
• iPod / iPhone / iPad Ready: ✓
• Google Cast for Audio: ✓ (Future Firmware Update)
• Home Network Music Streaming: ✓
• TIDAL High Fidelity Music Streaming: ✓
• Pandora: ✓
• Spotify: ✓
• Spotify Connect: ✓
• TuneIn Radio: ✓
• Deezer: ✓
• MQA (Master Quality Authenticated) Support: ✓ (Future Firmware Update)
• DSD Support (2.8, 5.6, 11.2 MHz): ✓
• Dolby TrueHD Support: ✓
• Apple Lossless (ALAC) Support: ✓
• WAV Support: ✓
• AIFF Support: ✓
• DSDIFF Support: ✓
• FLAC Support: ✓
• MP3 Support: ✓
• USB Input for Streaming Audio: ✓
• WiFi Certified: IEEE 802.11 a/b/g/n 5 Ghz / 2.4 Ghz
• Bluetooth: Built-in
• Firmware Updates via Network and USB: ✓

• Bi-directional Ethernet Control Port: ✓
• Rear Panel IR Input / Output: 1 / 0
• RIHD (Remote Interactive over HDMI): ✓

MISCELLANEOUS
• GUI for Setup Menu: ✓ (Advanced HD)
• Quick Setup Menu: ✓
• Input Name Edit: Fully Customizable
• HDMI Standby “Through” Mode: Assignable
• Dealer Settings Memory Store & Recall Function: ✓
• Screensaver Function: ✓ (Advanced)
• Hybrid Standby to Reduce Power Consumption: ✓
• Smart Grid Ready: ✓

AMPLIFIER SECTION
• Power Output (4 Ω, 1 kHz, 1% THD, 2 Channels Driven, FTC): 80W / Channel (4 Ω)
• Input Sensitivity and Impedance: 200 mV / 47 k-Ω (LINE), 6 mV / 47 k-Ω (Phono MM)
• Rated RCA Output Level and Impedance: 1 Vrms / 470 Ω (Subwoofer Pre Out)
• Phono Overload: 30 mV (MM 1 kHz, 1%)
• Frequency Response: 10 Hz – 40 kHz / +1 dB-3 dB
• Tone Control: ±10dB, 90 Hz (Bass), ±10dB, 7.5 kHz (Treble)
• Signal-to-Noise Ratio: 80 dB (IHF-A, Line), 70 dB (IHF-A, Phono)
• Speaker Impedance: 4 Ω – 8 Ω

TUNER SECTION
• Tuning Frequency Range: FM 87.5 MHz – 107.9 MHz
• FM Preset Memory: 40 Stations

GENERAL
• Power Supply: AC 100–240 V~, 50 / 60 Hz
• Power Consumption: 60 W
• Stand-by Power Consumption: 0.2 W
• Dimensions (W X H X D): 17 1/8″ x 2 3/4″ x 12 13/16″ 435 x 70 x 325.5 mm
• Weight: 8.8 lbs. (4.0 kg)
