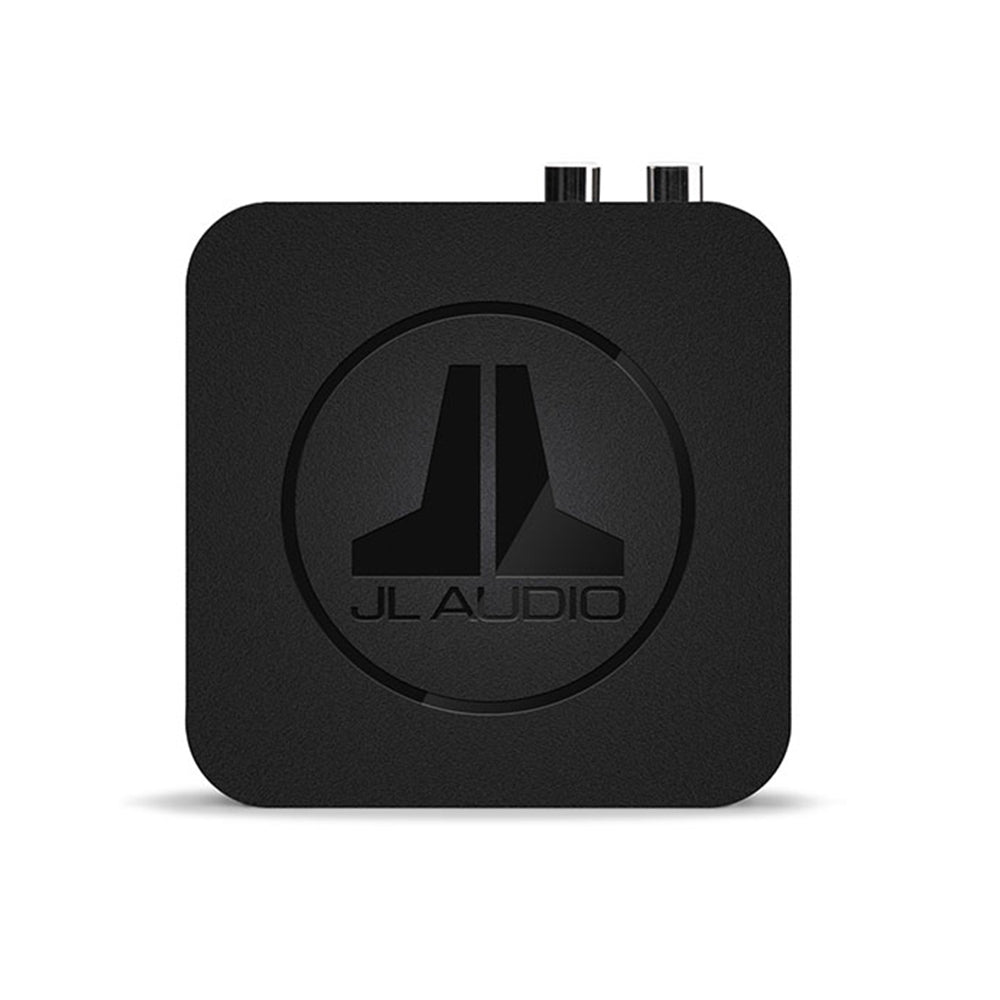

JL Audio JLink RX Wireless Receiver

Using state-of-the-art wireless technology, the JLINK™ RX receives pure, high-fidelity sound broadcast from a JLINK™ transmitter (sold separately) from up to 100 feet away (30 meters).

Operating at an ultra-high frequency of 2.4 GHz, the JLINK™ RX delivers crystal clear, stereo sound virtually anywhere throughout your home without needing to route or hide long expanses of signal cables. RCA-type input/output connectors are compatible with most audio equipment and a compact design makes it easy to hide out of sight. A JLINK™ port is also included for direct connection with JLINK™ compatible JL Audio products.

Especially useful in system designs that include remote source applications, lengthy signal cable runs or demanding installations due to challenging architecture, the JLINK™ TRX system (sold separately) gives you the freedom to position a source unit or outlying amplifier/powered loudspeakers (subwoofer or full-range) almost anywhere you would like.

• Add-on receiver for use with JLINK™ TRX kit (sold separately)
• Outstanding fidelity in subwoofer and full-range applications
• Bit-Perfect Digital PCM Stereo Wireless Technology (16 bit / 48 kHz)

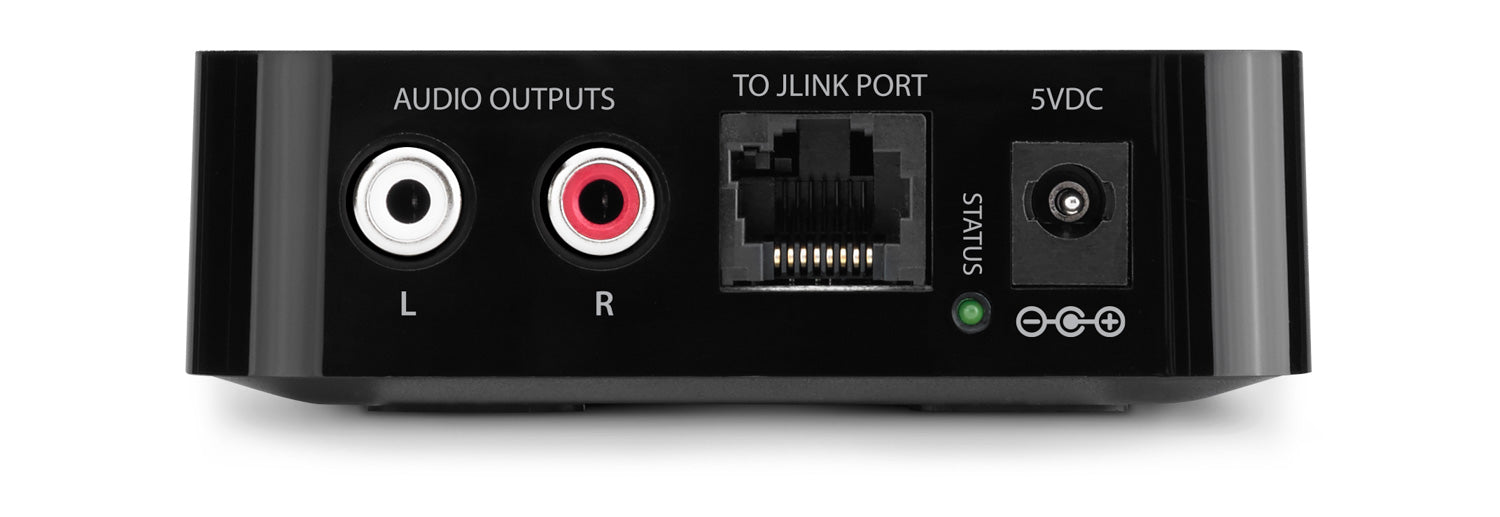

• RCA-type input/output connectors are compatible with most audio equipment
• Up to 4 JLINK™ receivers (sold separately) can be paired to each JLINK™ transmitter
• Includes JLINK™ port for use with compatible JL Audio products.

• Inputs: Bit-Perfect PCM Stereo Digital via 2.4 GHz Wireless
• Outputs: Analog, left & right RCA-type Analog via JLINK port to compatible product
• Output Impedance: 250 Ω
• Full Scale Output Voltage: 1.2 V
• Power Requirements: 100 mA, 5 volts (via AC adaptor or JLINK port)
• Height (H): 1.12 in / 28.5 mm
• Width (W): 3.5 in / 89 mm
• Depth (D): 3.5 in / 89 mm
