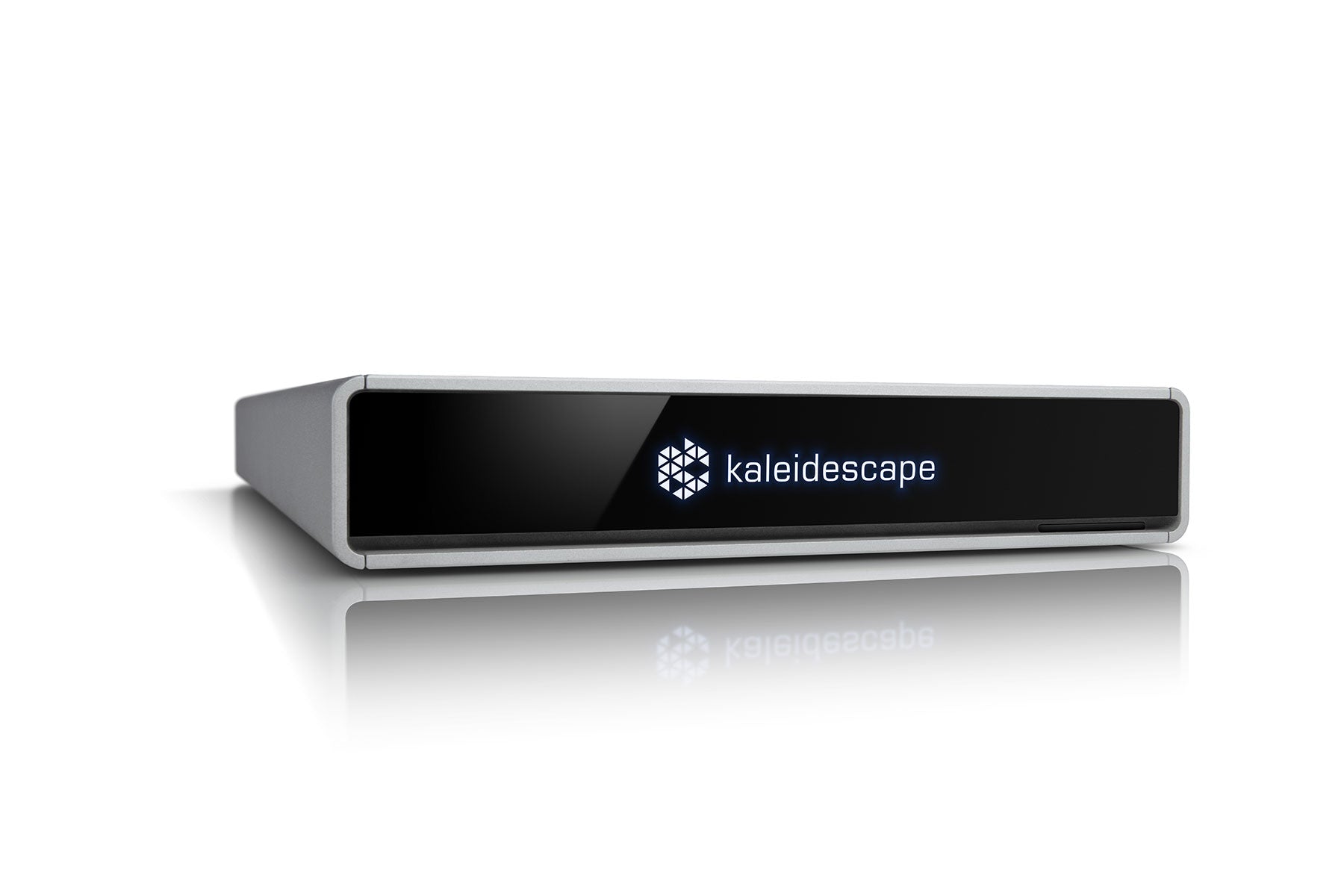

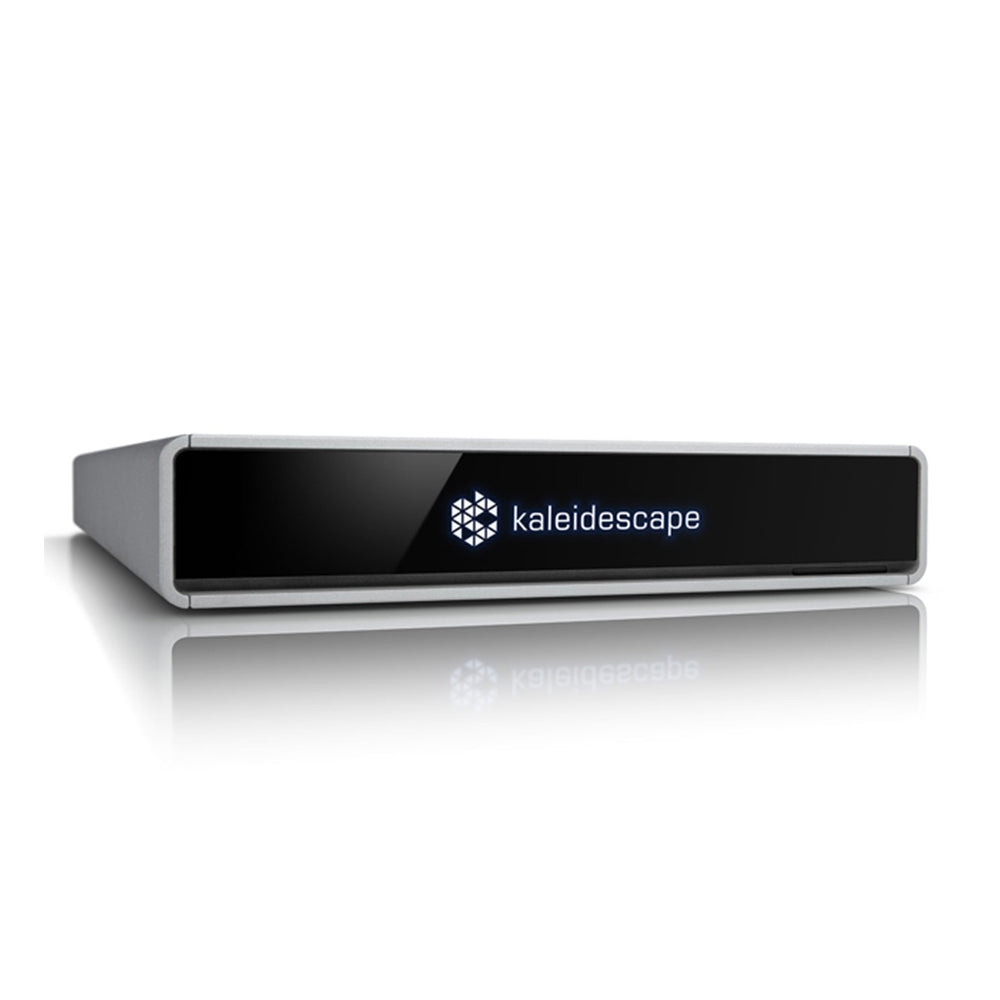

Kaleidescape Compact Terra Movie Server

Kaleidescape’s compact Terra creates powerful entry-level movie systems when combined with Kaleidescape Strato C players, and can be added to existing systems for incremental storage.
The Kaleidescape Terra movie server is the foundation of a multi-room Kaleidescape Strato system. Kaleidescape Terra, with Strato C players, provides the best 4K Ultra HD performance and the most flexibility for future expansion. The compact Terra is a smaller version of Terra, with the same performance and reliability.

The compact Terra stores full-fidelity movies on an enterprise-quality hard drive, maintaining visual detail and lossless audio. The compact Terra can support any number of Strato C players and is capable of serving up to 5 simultaneous 4K Ultra HD playbacks over a standard residential Gigabit Ethernet network. Terra provides caching and computing services that enhance player performance and enable large systems.

Once a movie is downloaded and stored on Terra, it can be enjoyed immediately from any player. Kaleidescape’s proprietary kOS operating system provides Terra with the advanced content protection required by Hollywood motion picture studios for storage of their highest-fidelity movies.

The compact Kaleidescape Terra is available with 18TB or 12TB of storage. Up to four compact Terras can be combined in a single system for more storage.

The Kaleidescape Movie Store is the world’s only source for movies with full-fidelity audio and video to match the capabilities of luxury home cinema equipment. The premier online store offers a library of the finest content from Hollywood’s major movie studios ranging from new releases to the gems from the past 100 years. The Kaleidescape Movie Store offers the best selection of 4K Ultra HD titles with high dynamic range support, and thousands of movies in full Blu-ray HD quality. These Blu-ray quality movies provide superb results when Strato scales them up to 4K. Both Blu-ray quality and 4K Ultra HD movies are available with lossless multichannel and object-based audio, including Dolby Atmos.

• Storage for approximately 300 (18TB) or 200 (12TB) 4K movies
• Downloads a 4K HDR movie in as little as 10 minutes, at up to 800 Mbps
• Ability to play back and download content at the same time
• Distributes up to 5 simultaneous playback streams in 4K HDR when connected to Strato C players
• The compact size allows the server to be rack mounted side-by-side with the Strato C

• DIMENSIONS: 7.87in × 1.52in × 14.33in (W × H × D) (20.0cm × 3.9cm × 36.4cm)
• WEIGHT: 7.2lbs (3.3kg)
• POWER: Max consumption: 32W, Typical: 20W, External power adapter: 100-240V, 50-60Hz universal input 12V @7A, 84W with detachable line cord
• NETWORK: Gigabit Ethernet (1000 Base-T)
• OTHER CONNECTION: USB 3.0 (reserved)
• ENVIRONMENT: Operating temperature: 41 to 95°F (5 to 35°C), Storage temperature: -4 to 140°F (-20 to 60°C), Relative humidity: 20 to 80% (operation) 5 to 90% (storage), Maximum operating altitude: 10,000ft (3,048m), Heat output: 109 BTU/hr (32W) max, Airflow: 5 CFM (8.4 m3/hr) max
• VENTILATION: Minimum 1in (2.5cm) space at the front, Minimum 2in (5cm) space at the rear
• RACK MOUNT (sold separately): Rack shelf available for mounting one or two units in a 19in rack, 1RU space
• CERTIFICATIONS: CSA 62368-1, CSA 60950-1, IEC 62368-1, IEC 60950-1, FCC CLASS B, CE, RoHS Compliant
• STORAGE: Available with 6TB, 12TB, 18TB, and 22TB of storage, 18TB configuration stores up to 300 4K Ultra HD movies, 490 Blu-ray quality movies, or 2,700 DVD quality movies, 12TB configuration stores up to 200 4K Ultra HD movies, 325 Blu-ray quality movies, or 1,800 DVD quality movies
• MOVIE SERVER: Maximum download rate: 800 Mbps, Serves 4K Ultra HD (or 4K HDR) movies simultaneously to up to 5 viewing zones, Serves Blu-ray movies simultaneously to up to 8 viewing zones, Serves DVD quality movies simultaneously to up to 20 viewing zones
• LIMITED WARRANTY: 3 years (extendable)
