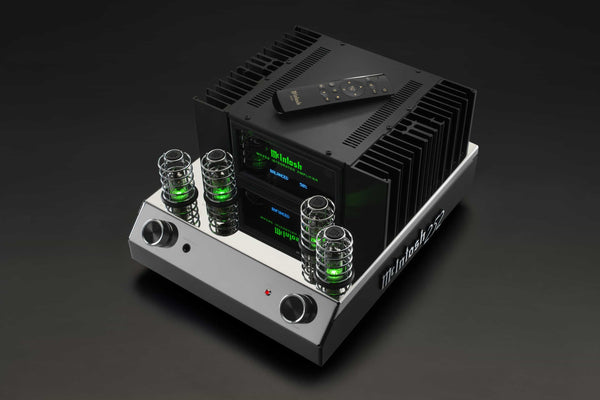

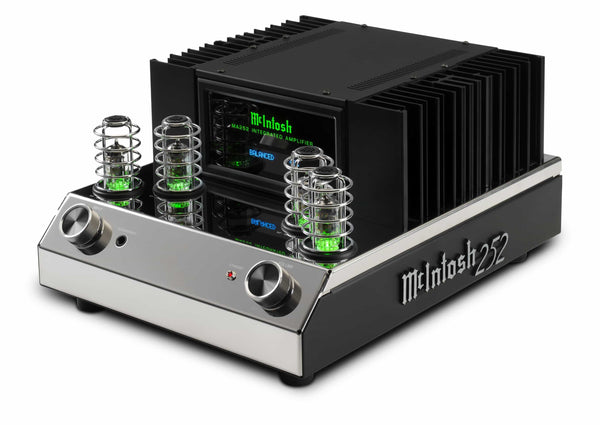

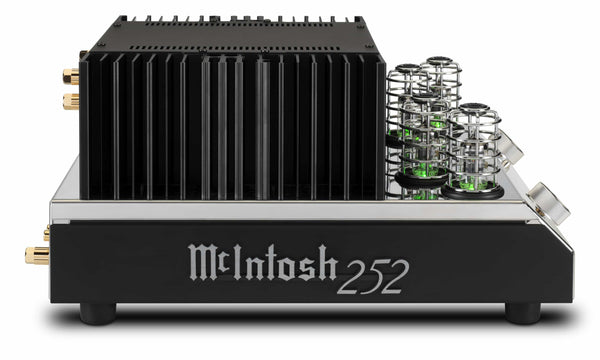

McIntosh MA252 Integrated Amplifier

The MA252 Integrated Amplifier is the first hybrid integrated amplifier from McIntosh. Taking retro design cues from the legendary McIntosh MC275 Vacuum Tube Amplifier, the MA252 combines the best of vacuum tube and solid state circuit design to create an amplifier that’s both visually and sonically stunning.

The preamplifier stage uses two 12AX7a and two 12AT7 vacuum tubes housed inside stylish protective cages; the output stage is a direct coupled solid state amplifier that delivers 100 Watts per channel into 8 Ohm speakers or 160 Watts per channel into 4 Ohm speakers. An all analog design, it comes with 2 unbalanced, 1 balanced and 1 Moving Magnet phono input for turntables​. All 4 inputs can be given user-friendly names in order to simplify user control. Bass and treble tone controls help fine tune your music to your personal preferences. A full range subwoofer output is included for use with a powered subwoofer to further enhance low frequencies.

The MA252 features McIntosh Monogrammed Heatsinks™, which are connected to advanced high current output transistors. These transistors eliminate the typical amplifier warm-up time so that the MA252 is in peak operating condition from the moment it’s turned on. A powerful control microprocessor is used for smooth system operation, along with some of the latest audio-grade circuit components that deliver the best possible sound.

Thanks to its solid state output, the MA252 is McIntosh's first product containing vacuum tubes to include their patented Power Guard® technology. Power Guard monitors the output signal for signs of over driving. It then makes real time micro-adjustments to the input signal to prevent harsh-sounding clipping that could potentially damage your speakers. If Power Guard is activated, the 2 vacuum tubes connected to the affected audio channel(s) will flash an amber color. They will return to their normal green color when the clipping has stopped.

Other McIntosh technologies found in the MA252 include Sentry Monitor™, High Drive headphone amplifier, and gold-plated speaker binding posts. Input selection, bass, treble, tone bypass, balance and input offset levels can be adjusted using the front panel knobs or the included remote control; all settings and input selection will be shown on the OLED display.

The entire unit sits atop a beautiful polished stainless steel chassis with a classic McIntosh-styled die cast aluminum name badge attached to each side.

• Power Output Per Channel: 100 Watts into 8 Ohms; 160 Watts into 4 Ohms
• Number of Channels: 2
• Speaker Impedance: 4 or 8 Ohms
• Rated Power Band: 20Hz to 20kHz
• Total Harmonic Distortion: 0.03%
• Dynamic Headroom: 1.8dB
• Frequency Response, +0,-0.5dB: 20Hz to 20kHz
• Frequency Response, +0, -3dB: 10Hz to 100kHz
• Sensitivity Phono (Moving Coil / Moving Magnet): N/A / 3.0mV
• Sensitivity High Level (Balanced / Unbalanced): 0.6V / 0.3Vv
• Sensitivity (Power Amp Input): N/A
• Signal to Noise Ratio (Moving Coil / Moving Magnet): N/A / 80dB
• Signal to Noise Ratio (High Level): 97dB
• Signal to Noise Ratio (Power Amp Input): N/A
• Input Impedance (Balanced / Unbalanced): 20K/20K
• Damping Factor: 8 Ohms: >200; 4 Ohms: >100
• Maximum Output (Balanced / Unbalanced): 8V Unbalanced
• Balanced Input: 1
• Unbalanced Input: 2
• Phono Input (Moving Coil / Moving Magnet): 0 / 1 (fixed loading)
• Upgradeable Digital Audio Module: No
• Digital Coaxial Input: 0
• Digital Optical Input: 0
• Digital MCT (DIN) Input: 0
• Digital USB Input: 0
• Balanced Variable Input: 0
• Unbalanced Fixed Output: 0
• Unbalanced Variable Output: 0
• Headphone Output: 1/4" High Drive
• Subwoofer Output: 1 (mono)
• AM/FM Tuner Option: No
• Home Theater Passthru: No
• Unbalanced Analog Connector Type: Standard
• Speaker Binding Post Type: Standard
• Service Port: 0
• Tone Controls: Bass and Treble
• Tone Bypass and Input Assign: Yes
• RS232 Control Input: No
• Power Control Output: 1
• Rear Panel Data Port: 1
• Rear Panel IR Sensor Input: No
• Input Level Match: Yes
• Output Autoformer: No
• Output Meters: No
• Dual Layer Chassis: Yes
• Power Requirement: 120V 50/60Hz, 3.7A
• Standby Power Requirement: <0.5 Watts
• Dimensions (W X H X D): 12" (30.5cm) x 7-5/8" (19.4cm) x 18" (45.7cm)
• Weight: 28 lbs (12.7 kg); 37 lbs (16.8 kg)
