McIntosh PS1K Powered Subwoofer

A MASTERFUL BLEND OF PRECISION, POWER, AND PASSION

Experience bass excellence with the McIntosh PS1K Powered Subwoofer. Expertly engineered with a passion for audio excellence, the PS1K enhances your home audio system by delivering deeper, more precise low frequencies.

NO-COMPROMISE DESIGN
Design and construction of the PS1K subwoofer embodies a no-compromise approach. At its core are two 13" woofers (also referred to as drivers), equipped with powerful magnets. These drivers feature our proprietary Low Distortion High Performance (LD/HP®) Magnetic Circuit Design, which significantly reduces distortion while boosting power handling and efficiency.

Finite Element Analysis (FEA) was essential in optimizing these drivers, ensuring a sound experience that is nothing short of extraordinary. The drivers are designed for extreme linearity to minimize distortion, with an extra-long voice coil and a suspension system engineered for extended linear travel.

The PS1K also features innovative multi-layer carbon fiber cones in the woofers. These cones, with an integrated voice coil joint, provide unmatched rigidity and power handling. Unlike traditional single-layer carbon fiber cones, which could flex and degrade sound quality, the PS1K’s multi-layer design offers exceptional strength and resists flexing, even during extended excursions.

FEEL THE SOUND

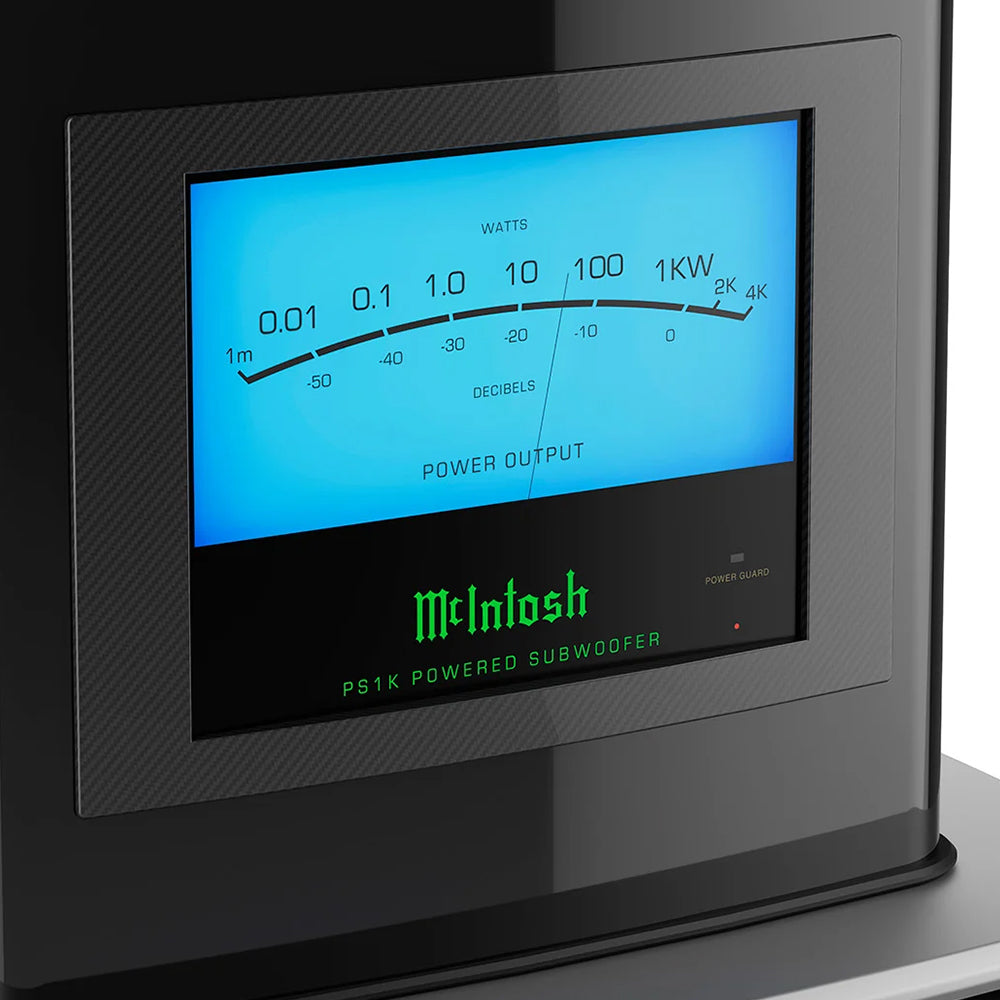

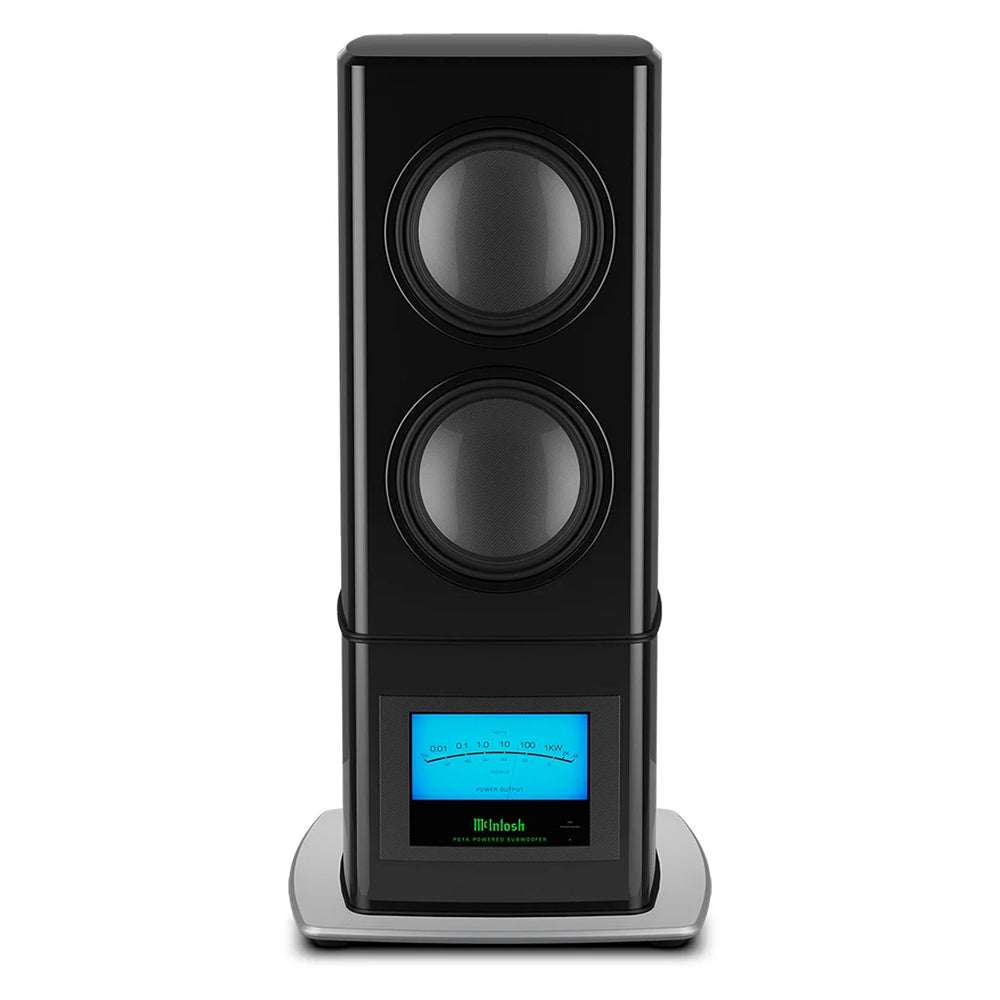

Feel the intensity of your favorite music and movies from the PS1K’s dual 13” woofers, with each powered by a 500 watt Class D amplifier that combine to deliver up to 1,000 watts of total output. These amplifiers are carefully calibrated to minimize distortion, delivering tight, clear bass even in large listening spaces. The woofers are mounted above the amplifier module, which features a power output meter to display the PS1K’s total output. The enclosure’s nearly 1-1/2" (3.8cm) thick baffle ensures rigidity and minimizes vibration, while the sealed box design eliminates port noise.

VERSATILITY FOR EASY SYSTEM INTEGRATION

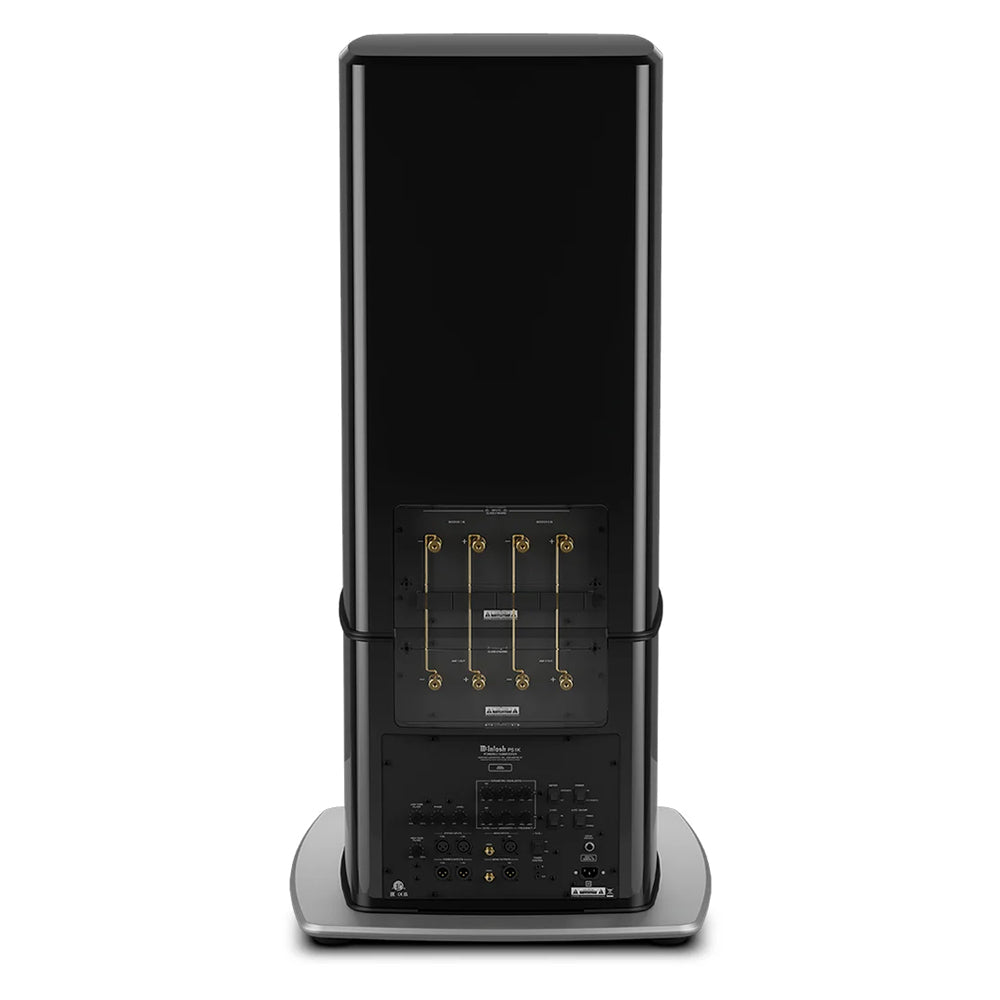

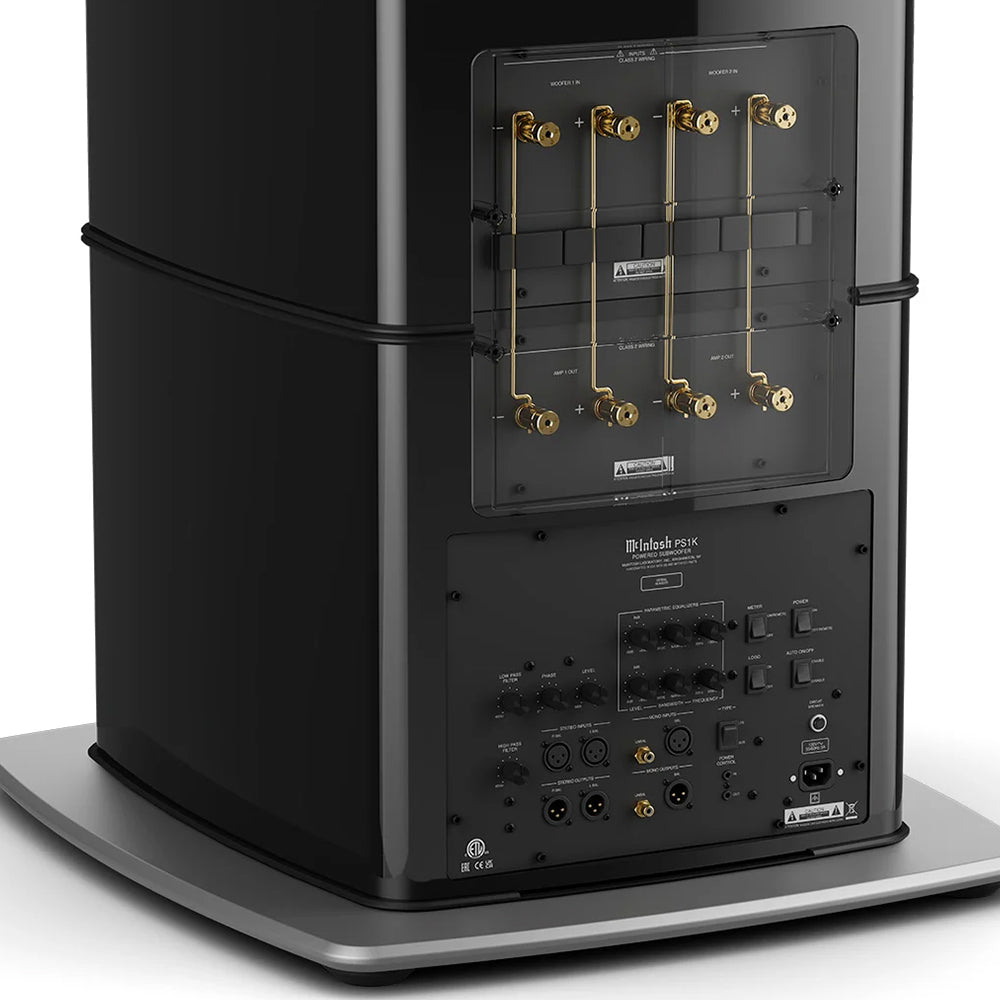

The PS1K excels in both performance and versatility. Whether you’re using a two-channel stereo system or a multi-channel home theater setup, the PS1K offers balanced stereo inputs and outputs, along with balanced and unbalanced subwoofer inputs and outputs. This range of connection options supports nearly any installation, and daisy-chaining allows for multiple PS1Ks in a system.

Once connected to your preamplifier, integrated amplifier, or home theater processor, the PS1K’s built-in filtering controls let you fine-tune it to your listening preferences. Adjustable Low Pass and High Pass filters allow you to set the crossover frequency, while two fully adjustable parametric EQ filters help mitigate the effects of room acoustics and speaker placement. Level Control and Phase adjustment knobs ensure seamless blending of the PS1K’s output with your existing audio system.

BUILT-IN PROTECTION FOR A LIFETIME OF LISTENING
McIntosh prioritizes the longevity of your audio investment. The PS1K features two of our key protection technologies. Power Guard® monitors the audio input signal and makes near-instantaneous adjustments to prevent harsh clipping, all without compromising sound quality. Sentry Monitor™, our fuse-less short-circuit protection, disconnects the amplifier’s output stage before current levels become unsafe and automatically resets when conditions normalize.

HARMONY OF SOUND, SIGHT AND CONVENIENCE
With a high gloss black finish, carbon trim, and aluminum base, the PS1K complements our XRT2.1K and XRT1.1K speakers, creating a stunning visual harmony. For convenience, the PS1K includes our Power Control technology for seamlessly turning the subwoofer on or off from other McIntosh components, eco-friendly signal sensing ensures efficient power management, while glide feet for hard floors and spikes for carpeting provide a perfect fit in any space.

Enhance your audio experience with the McIntosh PS1K Powered Subwoofer – a masterful blend of precision, power, and passion. Contact your local dealer to embark on a journey that transcends sound and touches the depths of your soul. At McIntosh, we invite you to discover the art of sound, the ultimate inspiration for life's most memorable moments.

• Electronic Specifications
  • Impedance Nominal: 8 Ohms
  • Power Output
    • 1KW (Two 500W, one per woofer)
    • Maximum Output: > 113 dB
  • Frequency Response
    • 20Hz - 500Hz with LFE
    • 20Hz - 100Hz without LFE
  • Filter Frequencies
    • High Pass: 40Hz - 100Hz
    • Low Pass: 40Hz - 100Hz
    • Phase: Continuously Variable
    • Parametric: Two band 30Hz - 100Hz, variable bandwidth and level +/- 8dB
  • Input Sensitivity
    • 1V Balanced
    • 500mV Unbalanced (0.5V)
  • Total Harmonic Distortion
    • Amplifier: 0.05%
    • Preamplifier (rear panel outputs): 0.005%
  • Voltage Gain
    • Amplifier: 31dB
    • Preamplifier: 10dB
  • Signal To Noise Ratio
    • Amplifier: 115dB A Weighted
    • Preamplifier: 100dB A Weighted
  • Input Impedance
    • 20K Ohms Balanced
    • 10K Ohms Unbalanced
  • Maximum Input Signal
    • 9V Balanced
    • 4.5V Unbalanced
• Driver Specifications
  • Number of Woofers: 2
  • Woofer Size: 13"
  • Woofer Type: Carbon Fiber with extra long excursion and Low Distortion High Performance (LD/HP®) Magnetic Circuit Design
• Connectivity
  • Balanced Input
    • 1 Pair Stereo
    • 1 Subwoofer (mono)
  • Unbalanced Input: 1 Subwoofer (mono)
  • Balanced Output
    • 1 Pair Stereo
    • 1 Subwoofer (mono)
  • Unbalanced Output: 1 Subwoofer (mono)
• General Specifications
  • Enclosure Finish: Highly polished Piano Black
  • Metal Finish
    • Anodized aluminum base
    • High Durable powder coated plate surfaces
• Weights & Dimensions
  • Unit Dimensions (W x H x D)
    • 19-1/4” (48.9cm) x 50-1/16” (128.7cm) x 22-1/2” (57.2cm)
    • Base footprint: 25-5/16" (64.3cm) x 28-7/16" (21.43cm)
  • Unit Weight: 370 pounds (167.8 kg)
  • Shipping Weight: 638 pounds (310 kg)
