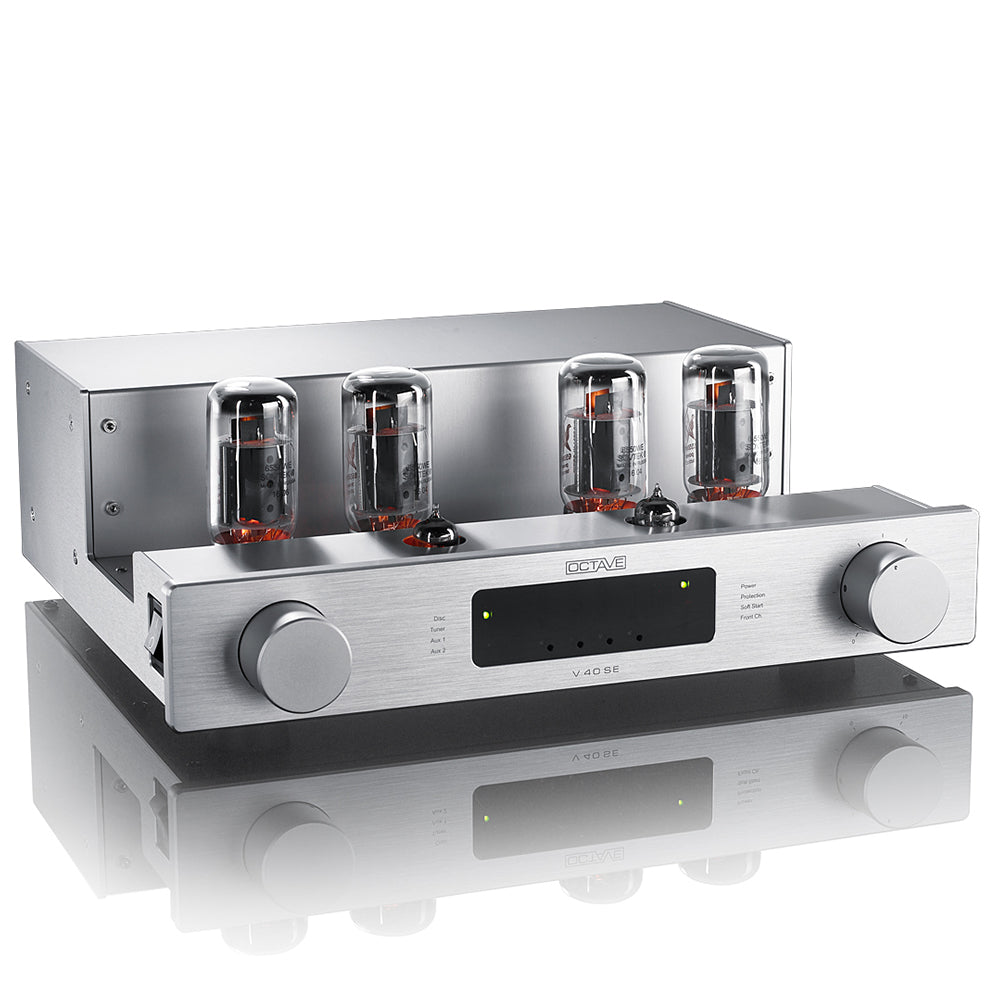

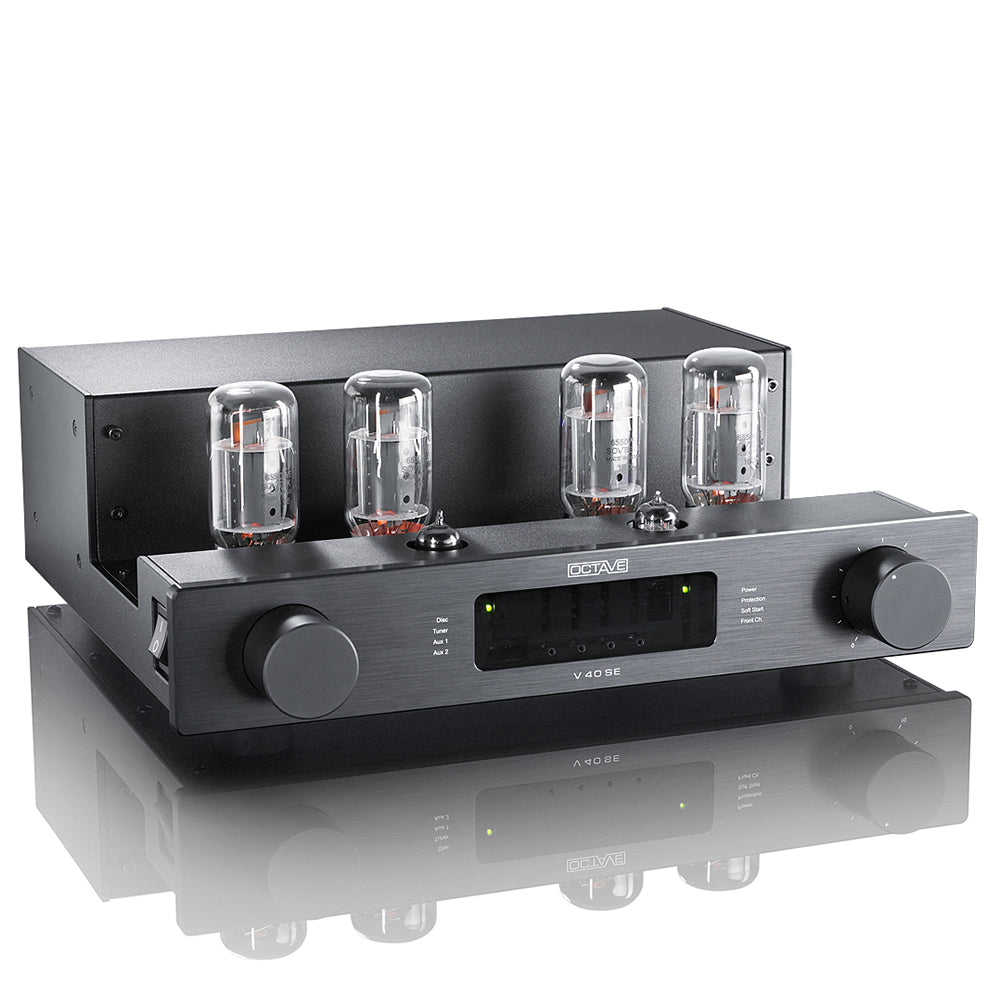

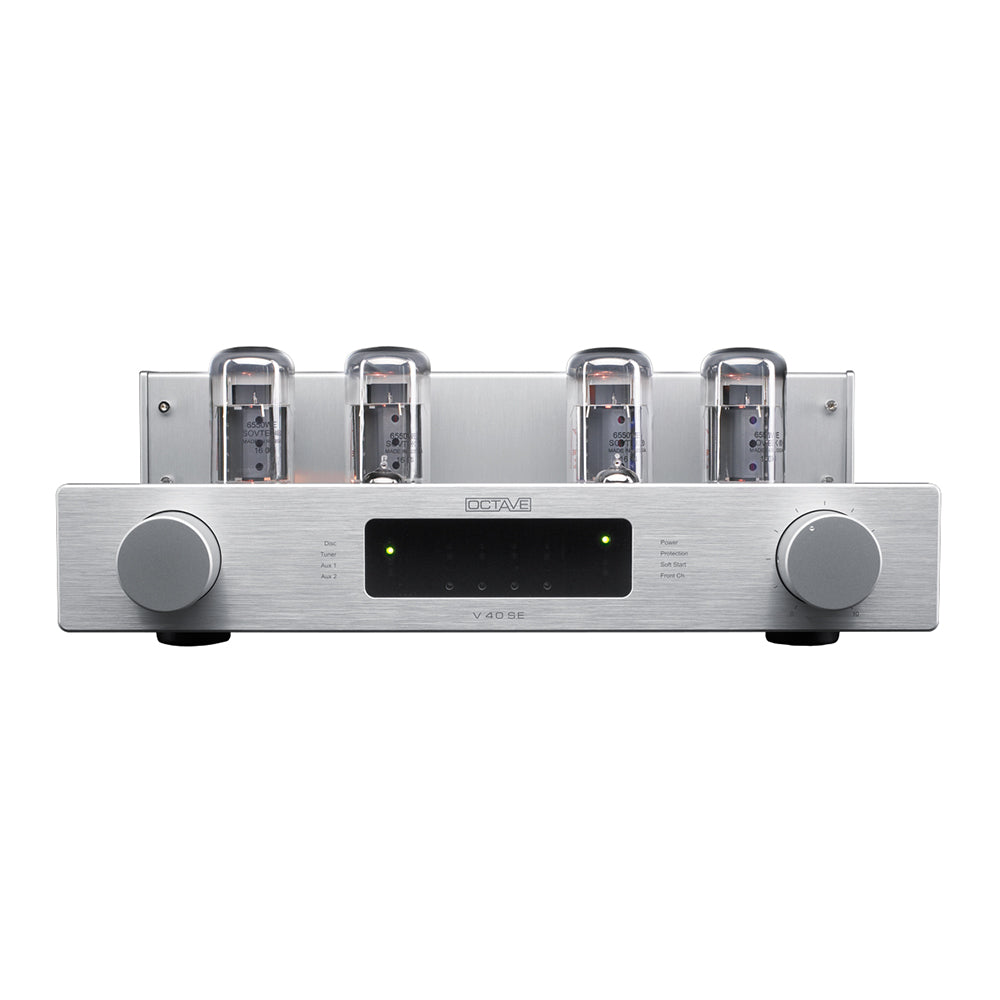

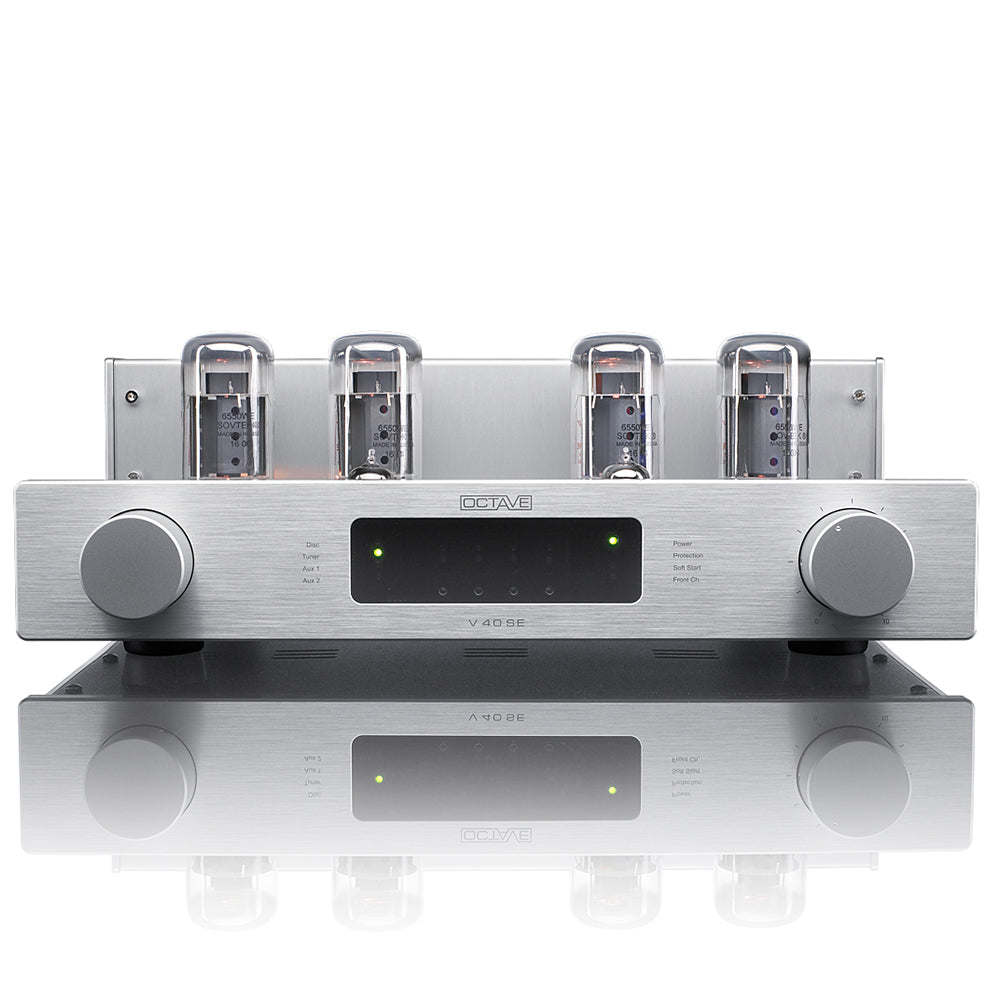

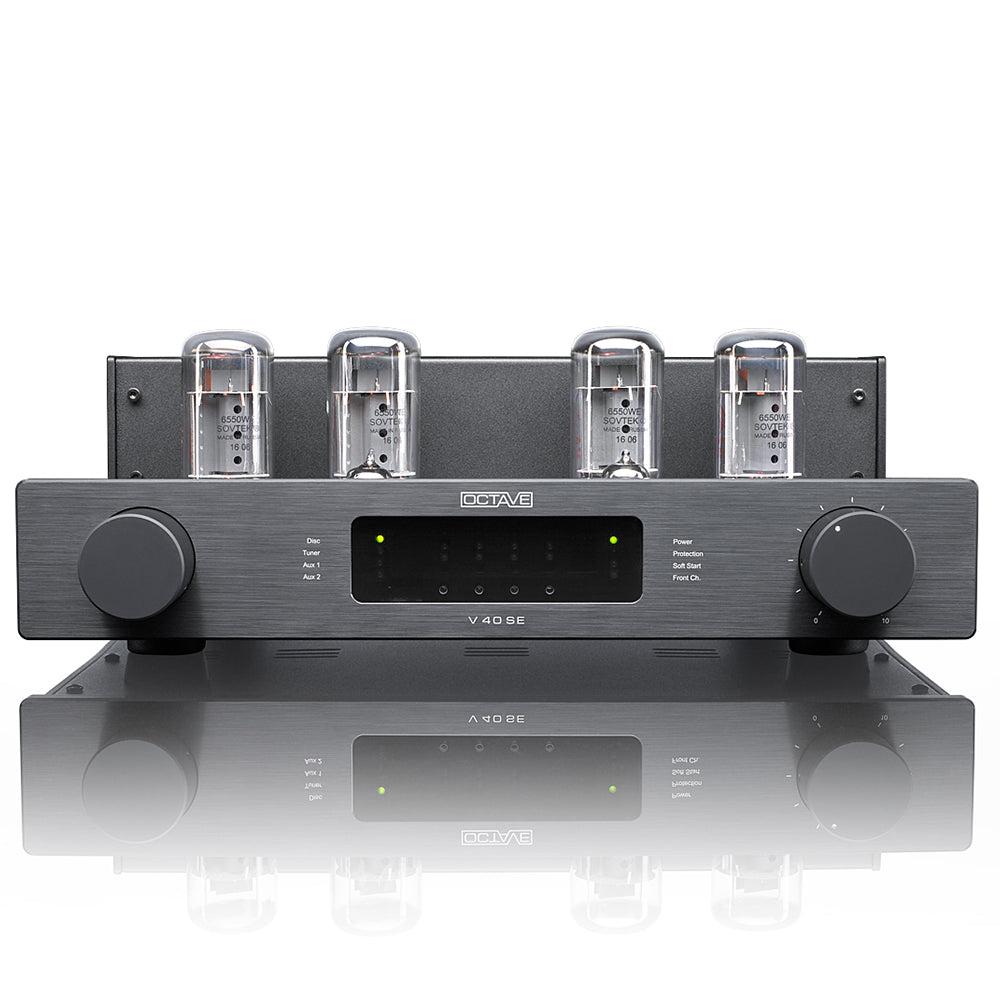

Octave V 40 SE Integrated Amplifier

The V 40 SE is a line level integrated amplifier with 2 x 40 W peak output power. He is a further development and direct descendant of the successful V 40 and V 50 amplifier models. His powerful, clear bass fundamentals and his captivating resolution in the high frequencies win much respect.

The V 40 SE output stage consists of two power pentodes (Type 6550 JJ) for each channel. Due to the BIAS Control and Monitoring System, the use of other pin-compatible output tubes is possible to match the amplifier to personal taste, or to benefit from new or improved tubes.

Like all OCTAVE amps the V 40 SE is based on the enhanced pentode configuration. This configuration ensures the absolute stability of the amplifier against the unstable impedance of the loudspeaker. Impedance mismatch is without consequence and the V 40 SE is stable down to a 2 ohms load.. An important contributor to this stability is the single impedance output transformer.

The V 40 SE is the perfect amp for speakers with an average efficiency rating. But not only is the low impedance capability an advantage, with his exceptional Signal-to-Noise ratio of –110dB / Full Power he is also an ideal partner for high efficiency loudspeakers.

Of course, the V 40 SE features the Power Management with the Soft-Start-Electronics, the Protection System, Eco Mode, BIAS Setting and Display, a Monitor/Record Output, the HT Bypass, the Pre-Out and a (Super) Black Box Connection.

Super Black Box

Like the Black Box, the Super Black Box is also an external power supply amplifier for the integrated amplifiers V 40 (SE), V 50, V 70 (SE), V 70 Class A, V 80 (SE), V 110 (SE) and V 16 Single Ended and the RE 280 MK2, RE 290, RE 320, MRE 130 and MRE 220 (SE) power amplifiers, but with even greater capacity.

Black Box

Like the Super Black Box, the Black Box is also an external power supply amplifier for the integrated amplifiers V 40 (SE), V 50, V 70 (SE), V 70 Class A, V 80 (SE), V 110 (SE) and V 16 Single Ended and the power amplifiers RE 280 MK2, RE 290, RE 320, MRE 130 and MRE 220 (SE).

• Basic model: V 40 SE Line
• Design: Silver or Black
• Tube Configuration: 4 x 6550 JJ

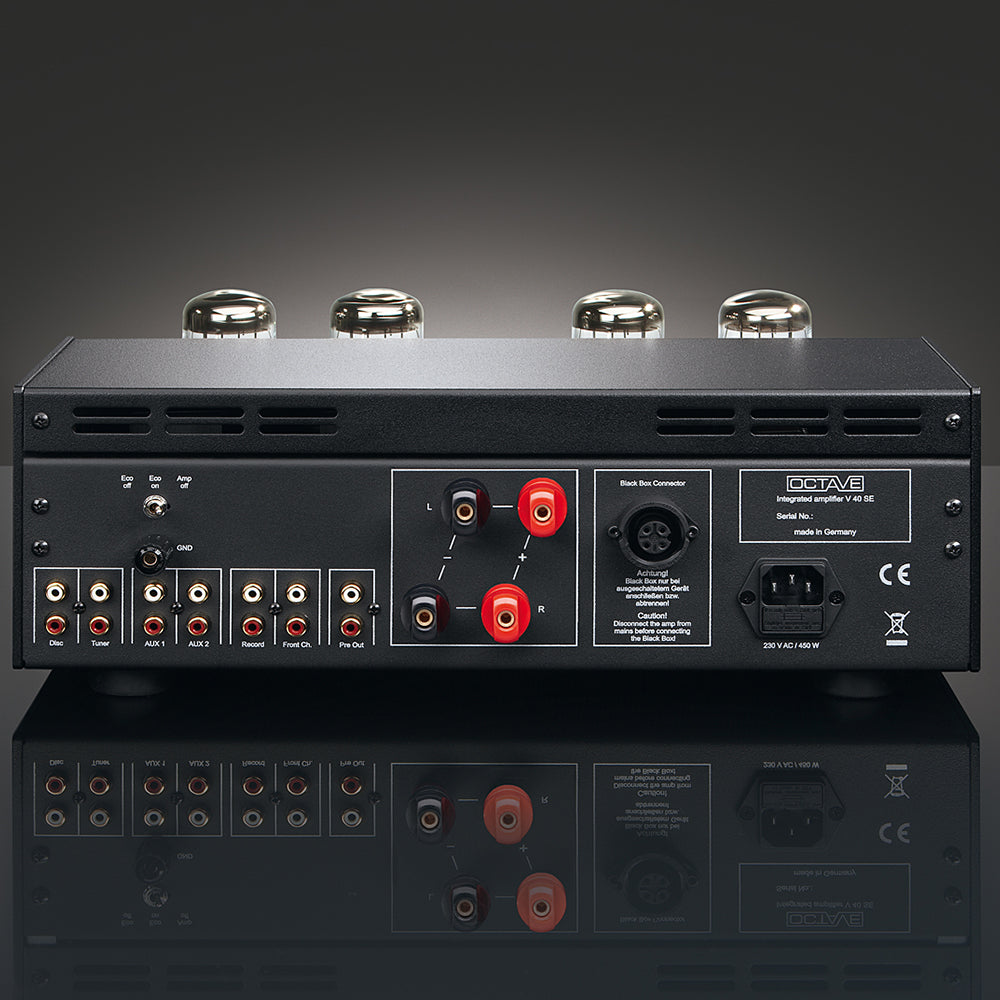

• Inputs: 5 x RCA (including one home theatre bypass input)
• Outputs: 1 x RCA record output / 1 x regulated preamplifier output / 1 x loudspeaker output
• Dimensions: 408 x 159 x 490 mm (W x H x D)
• Weight: 18.0 kg
• Full metal remote control: Volume control
• Eco mode: Power saving mode
• Bias control: Bias current control
• Adjustable Pre-Out: Preamp output RCA
• HT Bypass: Bypass-function for multichannel/home cinema
• Protection System: Soft Start; Protection circuit for device and output tubes
• Output power: 40 W RMS, 50 W / 4 ohms
• Frequency response: 20 Hz – 70 kHz
• Total harmonic distortion: < 0.1 % @ 10 Watt into 4 ohms
• Signal-to-noise ratio: -100 dB / 40W
• Amplification: 38 dB
