Octave V 70 SE Integrated Amplifier

The V 70 SE is a line level integrated amplifier delivering 2 x 70 W peak output power. Belonging to the same family of design as the V 40 SE, the V 70 SE performs with more power. His outstanding features are control and dynamics.

Like the V 40 SE, the V 70 SE benefits from the experience OCTAVE gained developing his predecessors. Numerous improvements over the previous V 70 model form the new V 70 SE. Embedded in the larger, optimized chassis construction of the V 80, the V 70 SE now offers higher performance while the sensitive electronic circuits are better shielded against the magnetic stray field of the transformer and the mains. The mains transformer itself is a special low-noise type encapsulated in a magnetic closed box.

The Output Stage consists of two power Tetrodes (Type 6550 JJ) per each channel. Due to the BIAS Control and Monitoring System, the use of other pin-compatible output tubes is possible to match the amplifier to personal taste, or to benefit from new or improved tubes.

The V 70 SE, as all OCTAVE amps, is based on the enhanced pentode configuration. This configuration ensures the absolute stability of the amplifier against the unstable impedance of the speaker. Impedance mismatch is without consequence, as the amplifier is stable down to a 2 ohms load. An important contribution to this stability is the Single Impedance Output Transformer.

Of course, the V 70 SE has the Power Management with Soft-Start Electronics, the Protection System, Eco Mode, a BIAS Setting and Display, a Monitor/Record Output, the HT Bypass, the Pre-Out and a (Super) Black Box Connection.

Super Black Box

Like the Black Box, the Super Black Box is also an external power supply amplifier for the integrated amplifiers V 40 (SE), V 50, V 70 (SE), V 70 Class A, V 80 (SE), V 110 (SE) and V 16 Single Ended and the RE 280 MK2, RE 290, RE 320, MRE 130 and MRE 220 (SE) power amplifiers, but with even greater capacity.

Black Box

Like the Super Black Box, the Black Box is also an external power supply amplifier for the integrated amplifiers V 40 (SE), V 50, V 70 (SE), V 70 Class A, V 80 (SE), V 110 (SE) and V 16 Single Ended and the power amplifiers RE 280 MK2, RE 290, RE 320, MRE 130 and MRE 220 (SE).

Phono MM or MC

A phono MM or MC board can optionally be used in the V 70 SE, V 70 Class A, V 80 SE, V 110 SE and HP 300 SE. This additional board is internally connected to the phono input, which is then no longer available as a high level input.

• Basic Model: V 70 SE Line
• Options: Phono MC or MM

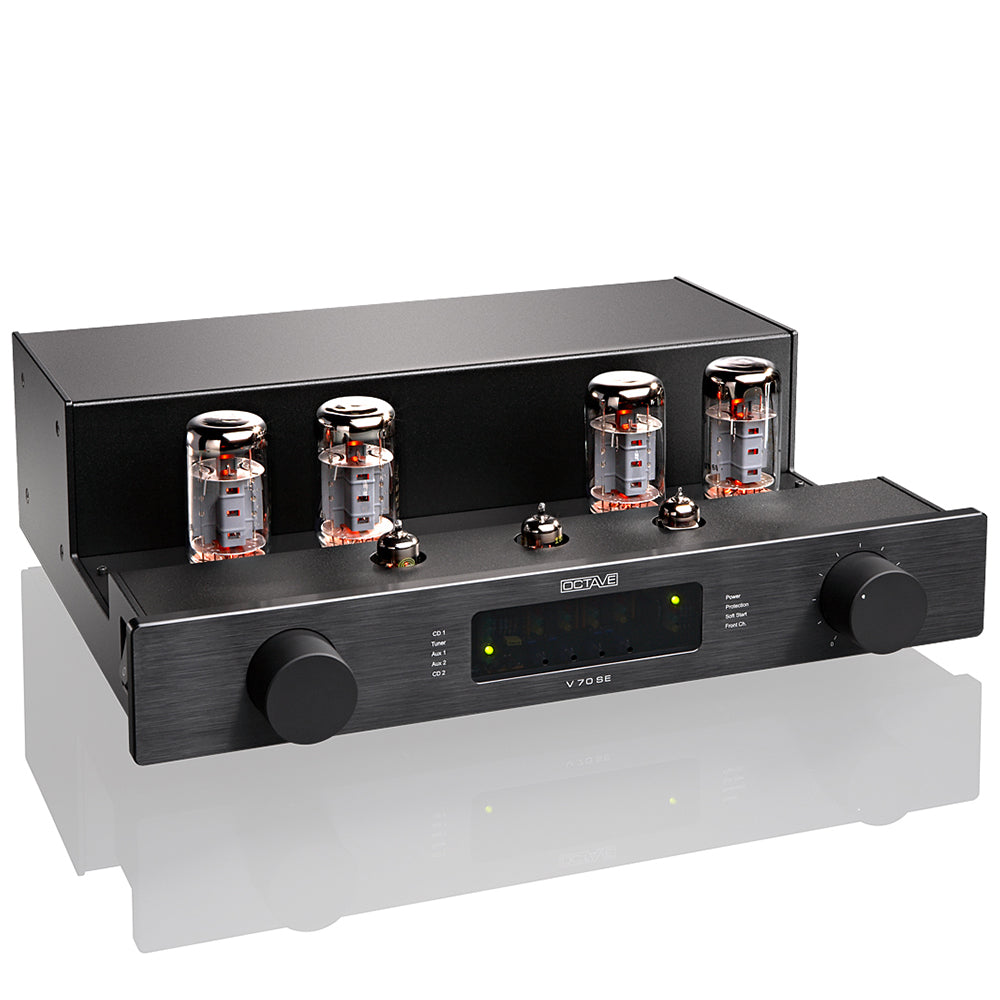

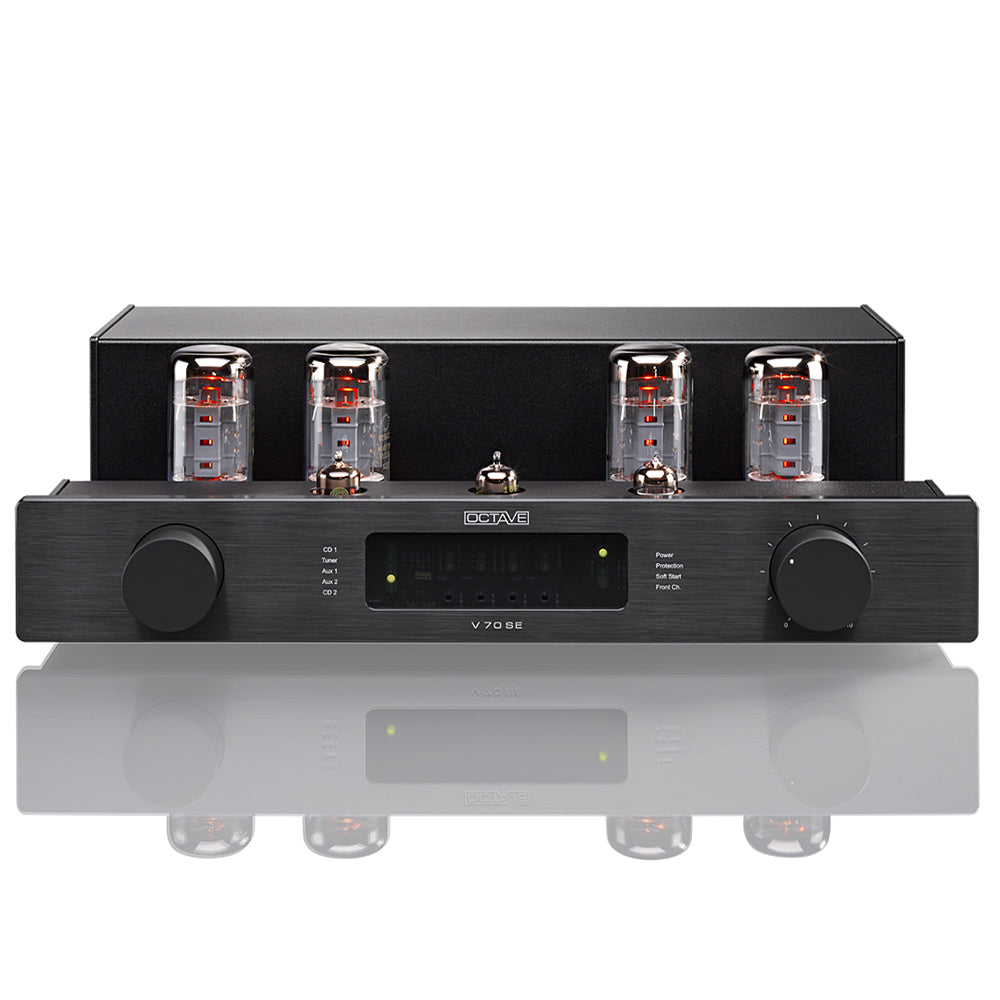

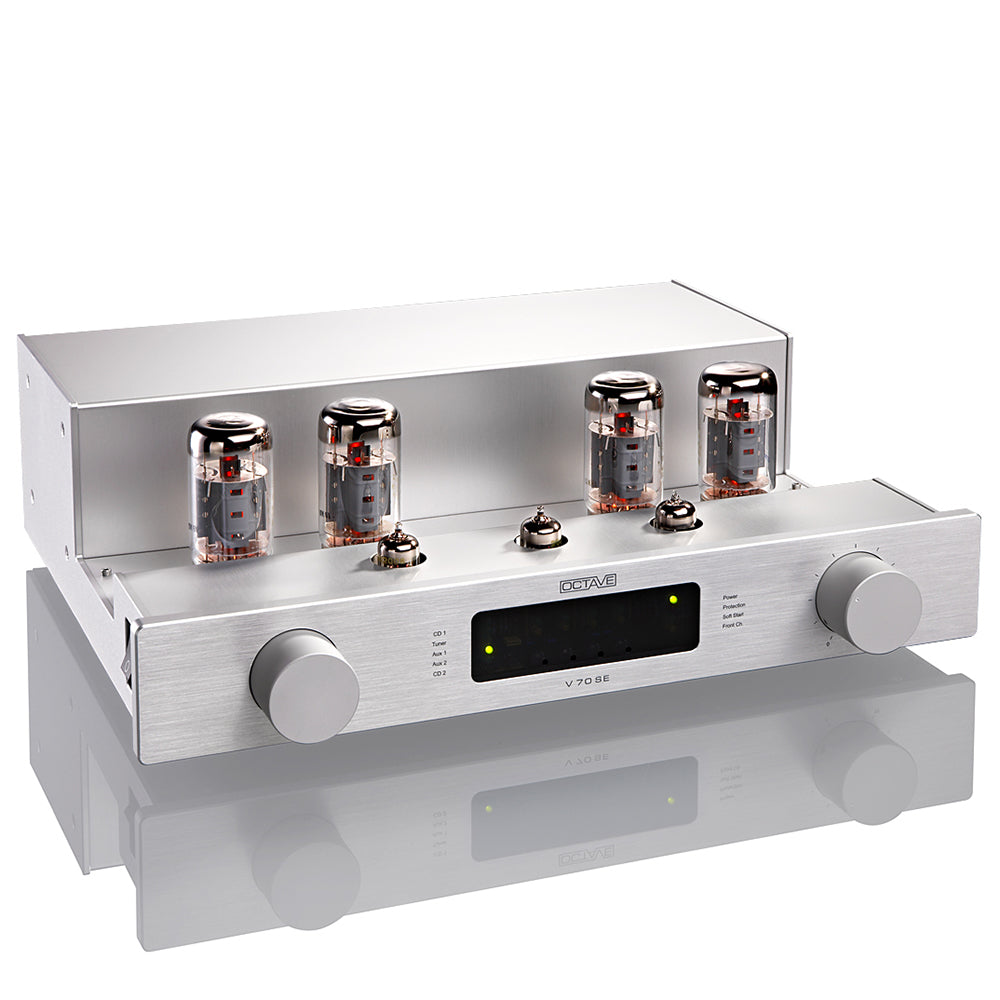

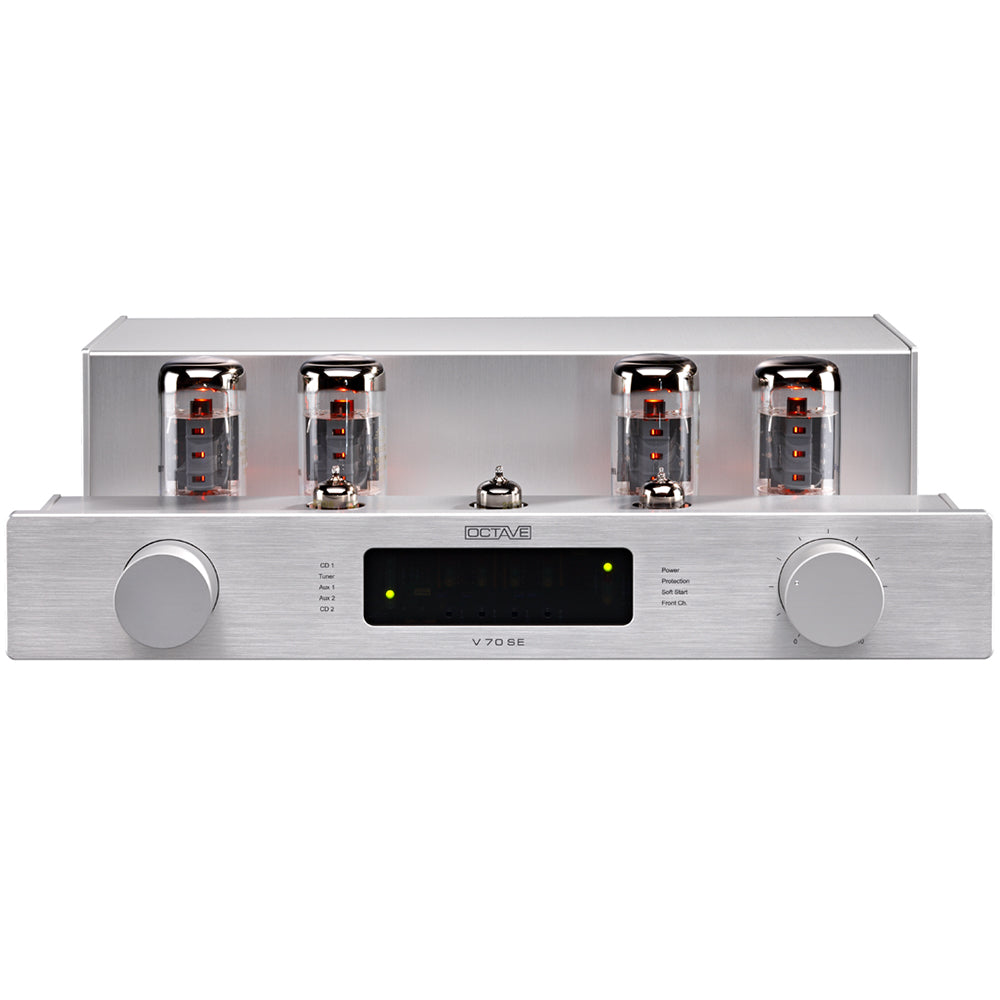

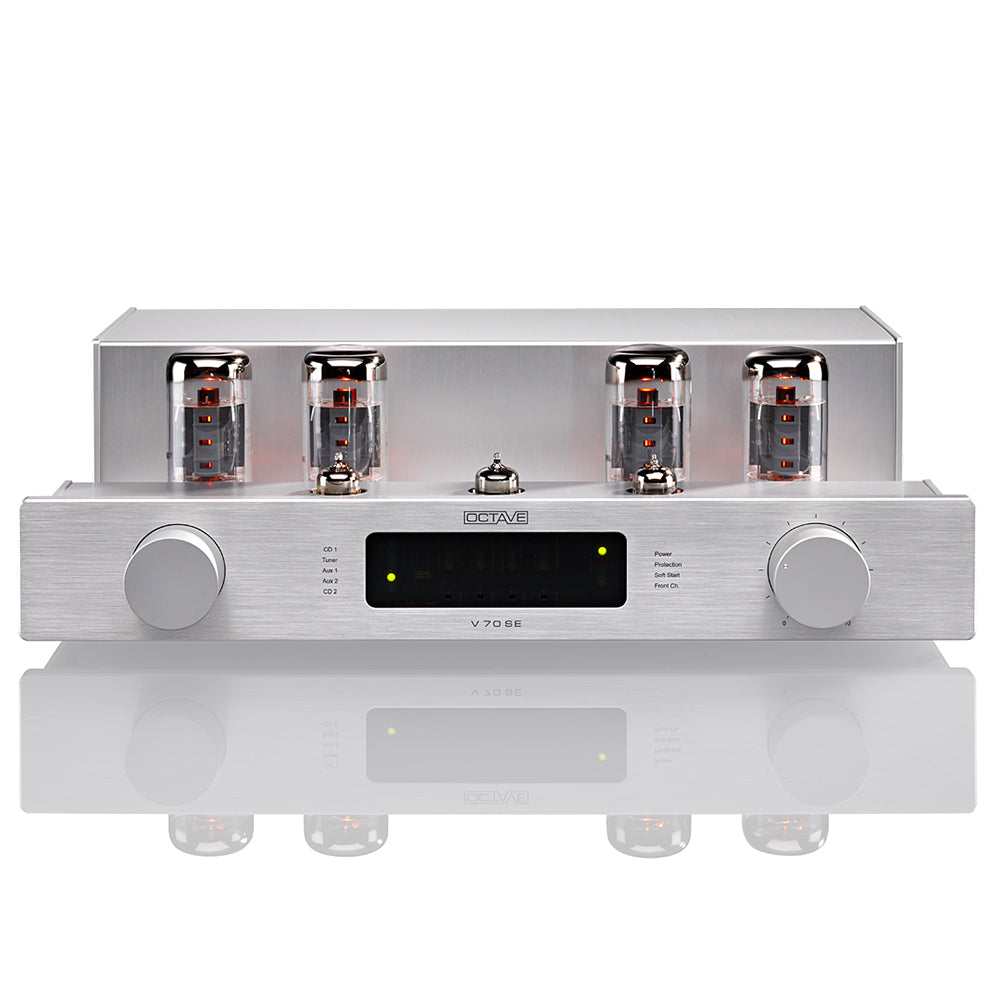

• Design: Silver or Black
• Tube Configuration: 4 x 6550 JJ

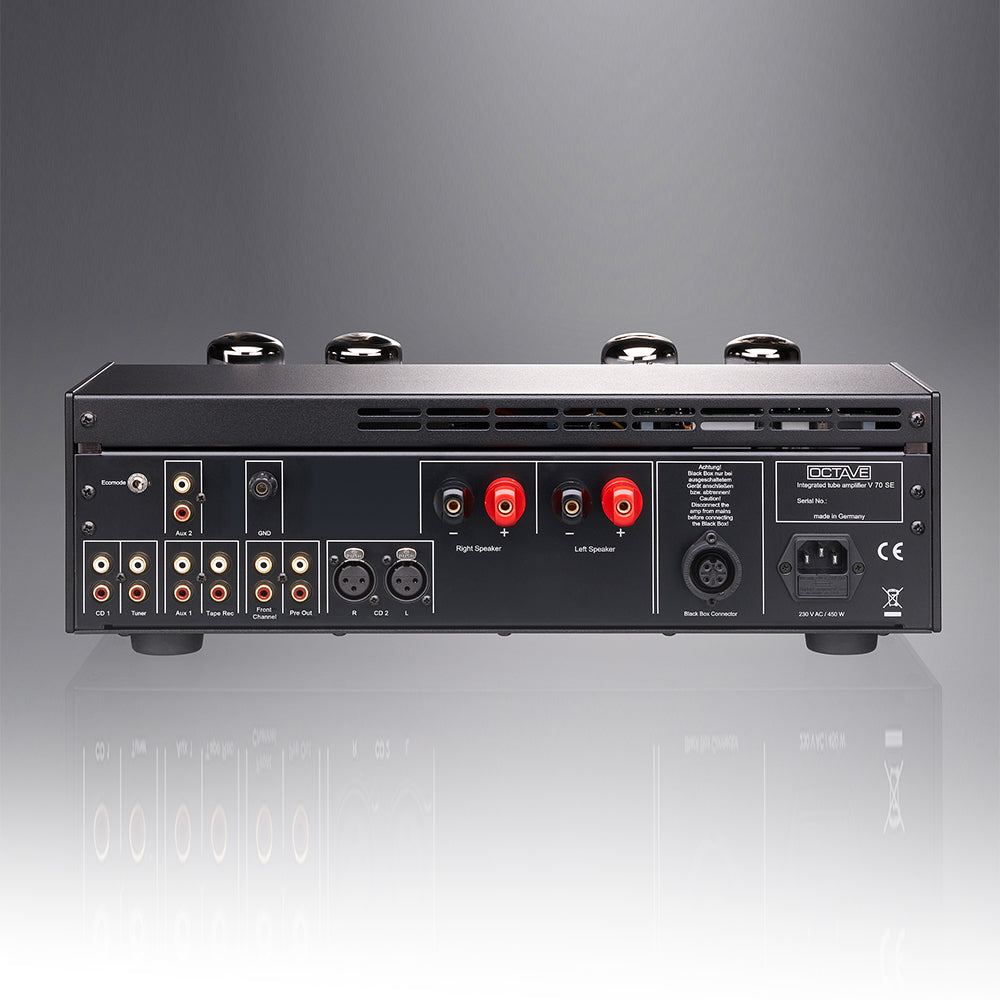

• Inputs: 5 x line level RCA (one is a Home Theatre Bypass and one is a phono input with the phono option) / 1 x XLR
• Outputs: 1 x pre-out regulated / 1 x record output RCA / 1 x loudspeaker terminals
• Dimensions: 451 x 150 x 415 mm (W x H x D)
• Weight: 22.1 kg
• Full metal remote control: Volume control
• Eco Mode: Power saving mode
• Bias Control: Quiescent current display and setting
• Adjustable Pre-Out: Preamp output RCA
• HT Bypass: Bypass-function for multichannel receiver / TV
• Protection System: Soft Start; Protection circuit for amplifier and output tubes
• Phono MC (MM): Option
• Black Box connector: High voltage connector for an external power supply enlargement (Black Box and Super Black Box)
• Output power: 70 W / 4 ohms
• Frequency response: 20 Hz - 70 kHz @ 10 W - 0 / -2 dB
• Total harmonic distortion: 0.1 % at 10 W / 4 ohms
• Signal-to-noise ratio: -100 dB / 40 W
